- Developed primarily for use with Uninterrupted Direct Current loads but can also be used with Alternating Currents.
- Designed to be installed within the confines of a Power Distribution System 1U rack.

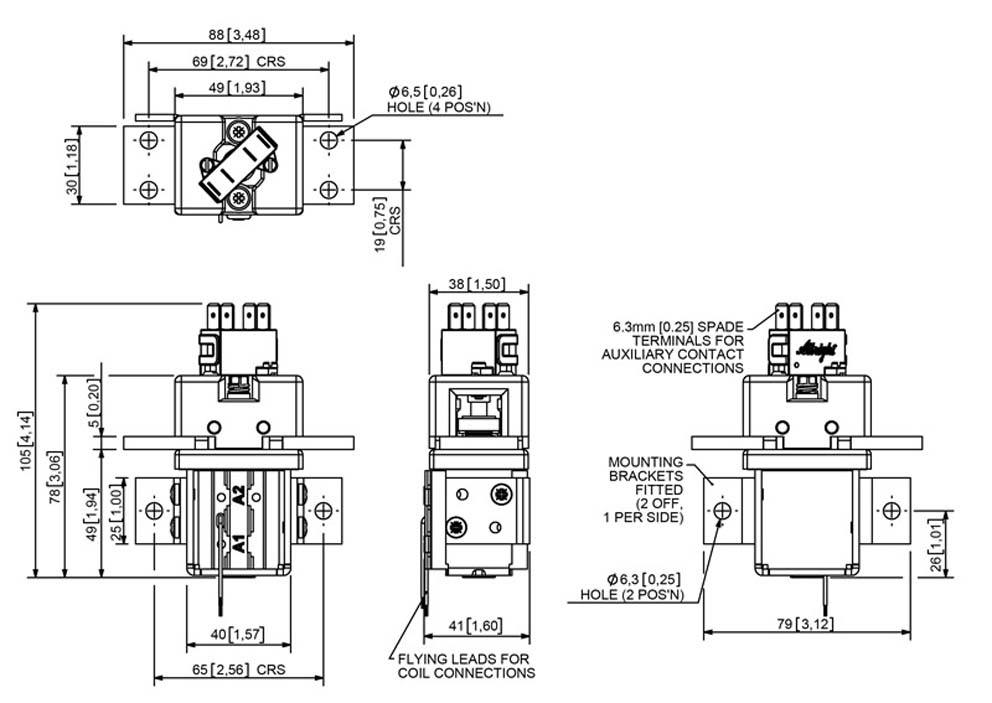

- 6.3mm spade coil connections or flying leads.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
Spare Parts are not available – this contactor is deemed non-serviceable.
SW225 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | - | 225A |
| Intermittent Current Rating: | ||
| 30% Duty | - | 410A |
| 40% Duty | - | 355A |
| 50% Duty | - | 320A |
| 60% Duty | - | 290A |
| 70% Duty | - | 270A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 330A at 60V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | 60V | 60V |
| Typical Voltage Drop per pole across New Contacts at 225A | 40mV | |
| Mechanical Durability | >1,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 240V | |

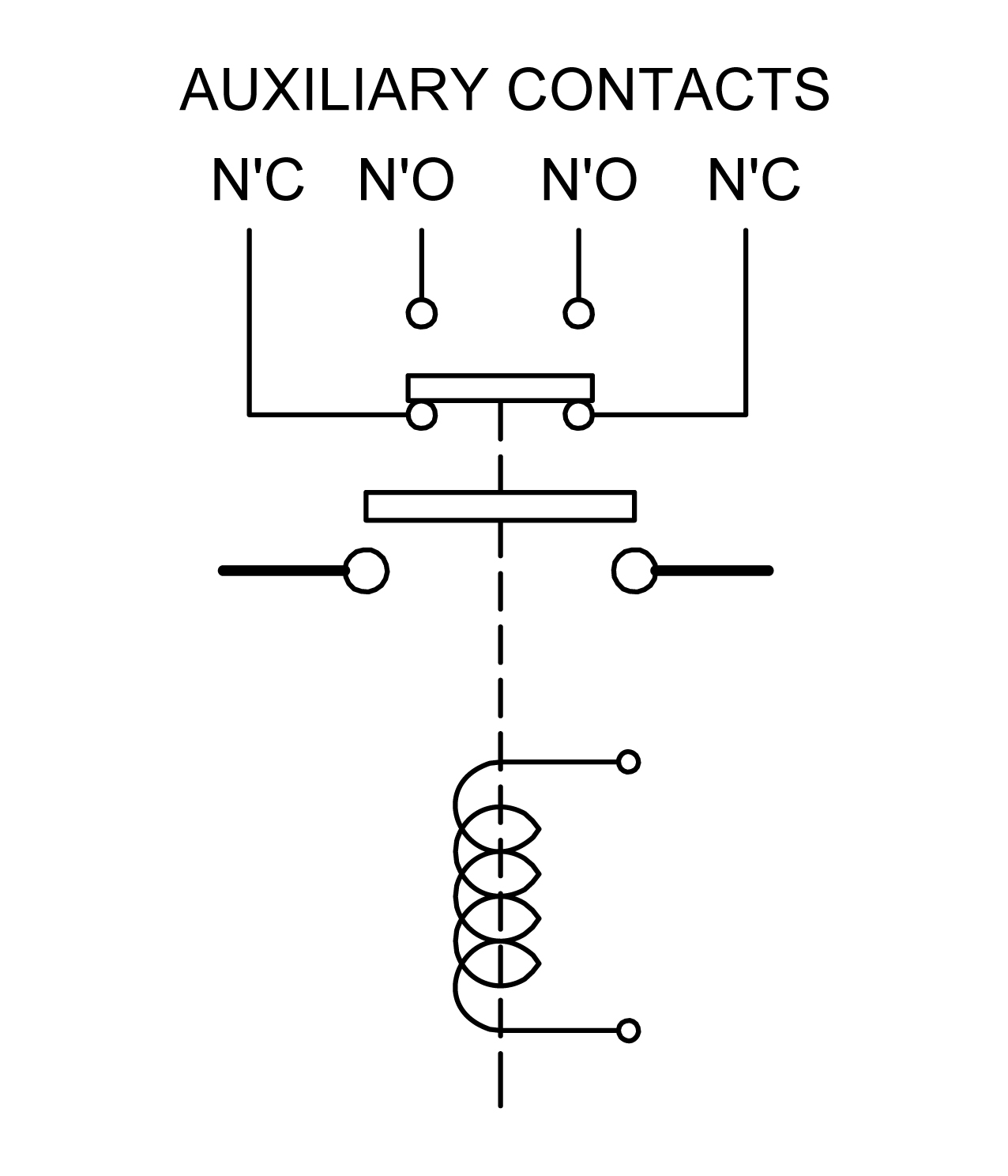

SW225 Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| Auxiliary | |
| Coil Suppression | |
| Coil Termination | |
| Fixed Contact Terminal | |
| Magnetic Latching | |
| Manual Override | |
| Mounting | |
| Vacuum Impregnation |
