As a long-established company, we have evolved our designs to improve performance and reliability as well as maintain and keep pace with customers’ and industries requirements. Due to this, we have products which over our 75 year history have become obsolete or now have limited availability. Where possible we have designed and manufactured modern equivalents which can be used as a replacement for the Obsolete, Limited Availability and Existing Applications Only products. The tables below list the products which have limited availability or are obsolete.
Limited Availability Products
The following products, although not obsolete have limited availability, where available a modern equivalent has been listed which does not have any availability constraints. Please consult our Technical Department in the first instance if you wish to purchase a limited availability product.
- Type
- Main Terminal
- Interrupted
- Uninterrupted
- Configuration
- Replacement Contactor
- Type: SW62A
- Main Terminal: -
- Interrupted: -
- Uninterrupted: -
- Configuration: NO - SP - ST
- Replacement Contactor: SW180
- Type: SW65A
- Main Terminal: -
- Interrupted: -
- Uninterrupted: -
- Configuration: NO - SP - ST
- Replacement Contactor: SW181

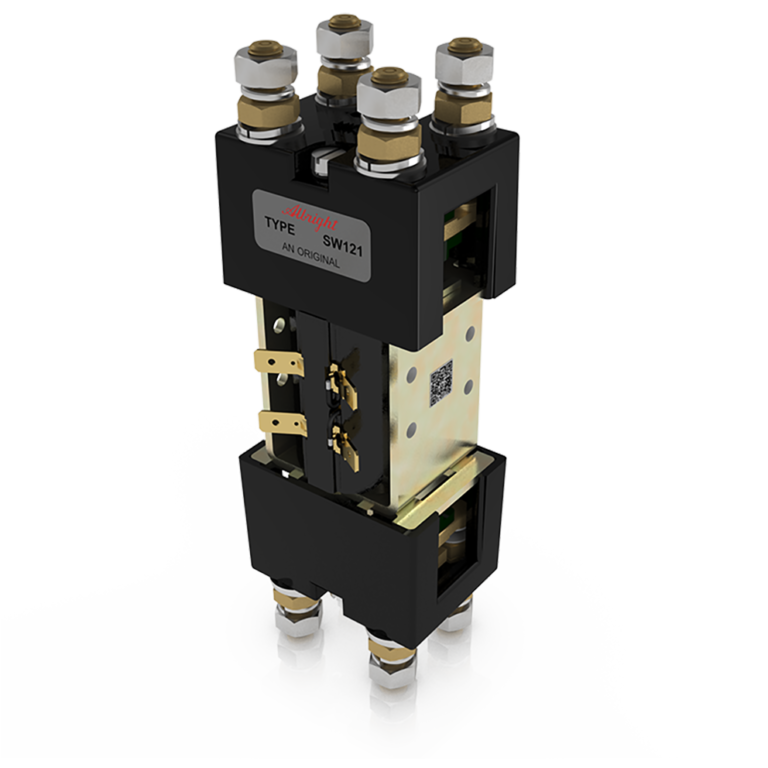

- Type: SW121
- Main Terminal: Male Stud
- Interrupted: 125A
- Uninterrupted: 125A
- Configuration: CO - DP - DT
- Replacement Contactor:
- Designed for Direct Current loads, typical applications include motors as used on small electric vehicles such as light industrial trucks and powered cars.
- SW121 are not polarity sensitive thus they can be used for switching Alternating Current loads.
- M8 stud main terminals and 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
View Product

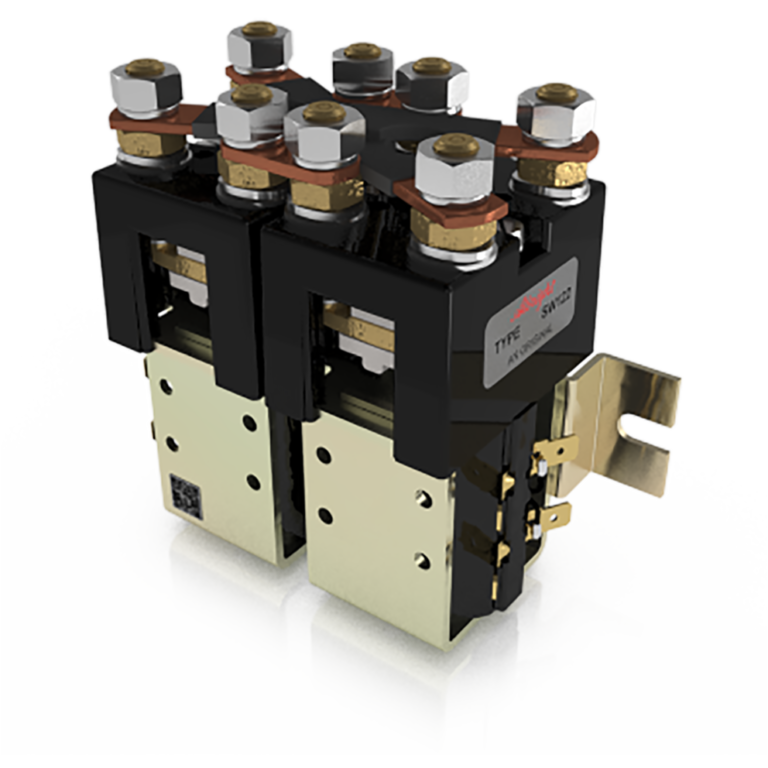

- Type: SW122
- Main Terminal: Male Stud
- Interrupted: 125A
- Uninterrupted: 125A
- Configuration: NO - DP - DT
- Replacement Contactor:
- Designed for Direct Current loads, typical applications include motors as used on small electric vehicles such as light industrial trucks and powered cars.
- SW122 is not polarity sensitive thus they can be used for switching Alternating Current loads.
- M8 stud main terminals and 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).

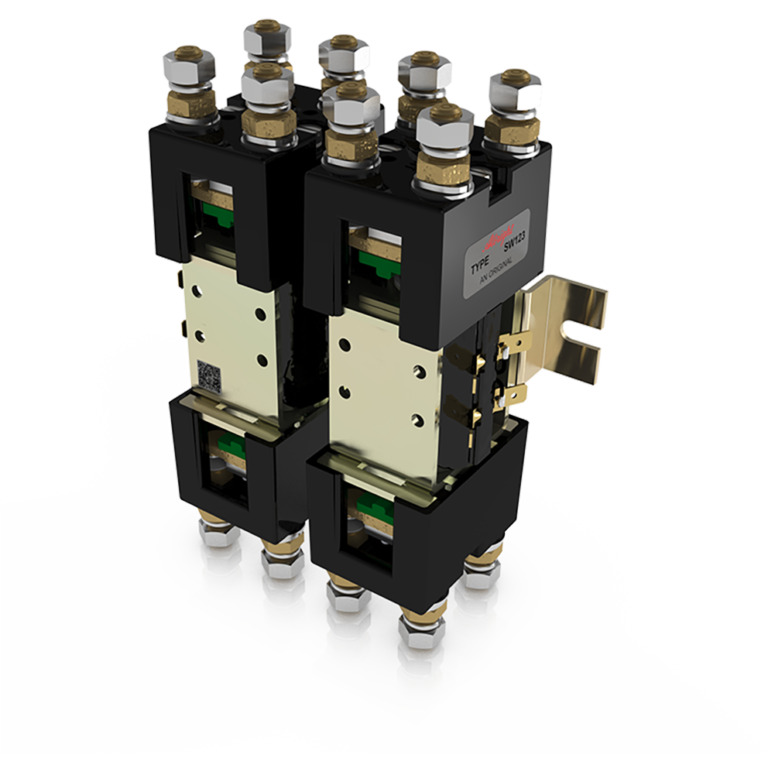

- Type: SW123
- Main Terminal: Male Stud
- Interrupted: 125A
- Uninterrupted: 125A
- Configuration: CO - DP - ST
- Replacement Contactor:
- Designed for Direct Current loads, typical applications include motors as used on small electric vehicles such as light industrial trucks and powered cars.
- These contactors are not polarity sensitive thus they can be used for switching Alternating Current loads.
- M8 stud main terminals and 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).

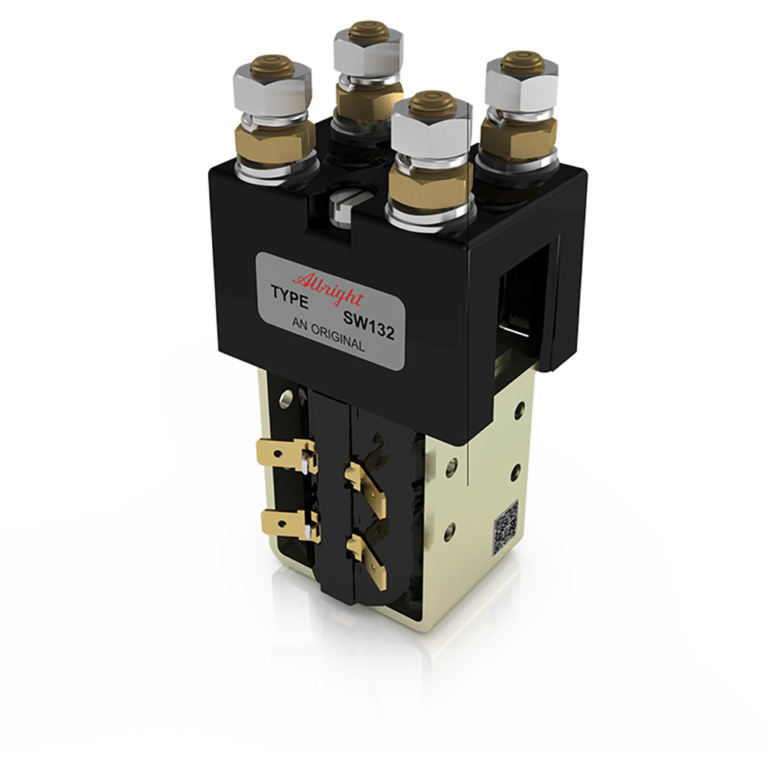

- Type: SW132
- Main Terminal: Male Stud
- Interrupted: 100A
- Uninterrupted: 100A
- Configuration: NC - DP - ST
- Replacement Contactor:
- Designed for Direct Current loads, typical applications include motors as used on small electric vehicles such as light industrial trucks and powered cars.
- These contactors are not polarity sensitive thus they can be used for switching Alternating Current loads.
- M8 stud main terminals and 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
Please note Normally Closed contacts are not suited to make and break load.
View Product

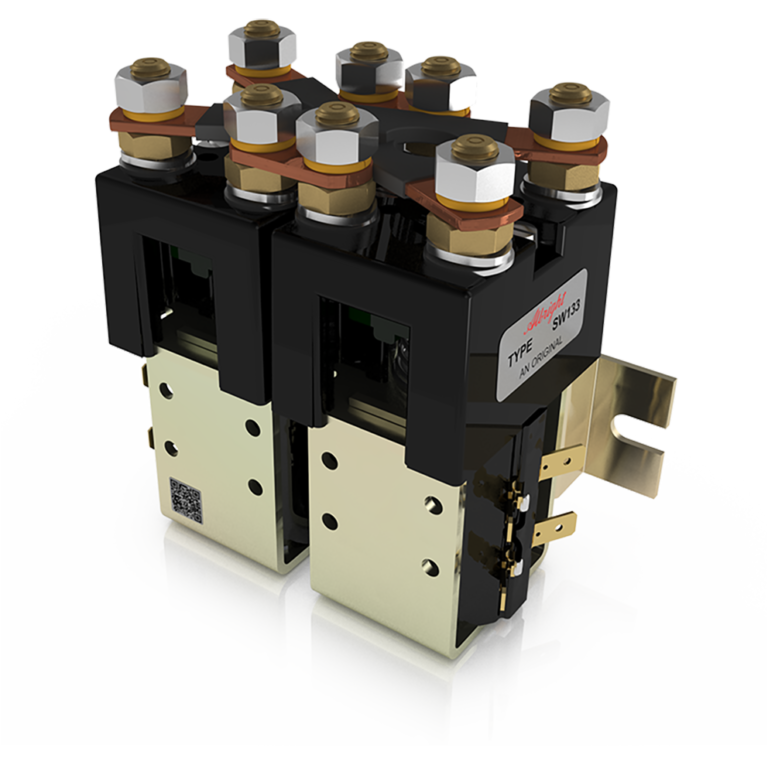

- Type: SW133
- Main Terminal: Male Stud
- Interrupted: 100A
- Uninterrupted: 100A
- Configuration: 2 x NC - DP - ST
- Replacement Contactor:
- Designed for Direct Current loads, typical applications include motors as used on small electric vehicles such as light industrial trucks and powered cars.
- The SW133 is not polarity sensitive thus they can be used for switching Alternating Current loads.
- Type: SW260
- Main Terminal: Busbar
- Interrupted: -
- Uninterrupted: 300A
- Configuration: NO - SP - ST
- Replacement Contactor:
- Designed for use in telecommunications and power distribution applications where an uninterrupted load is switched.
- Primarily for use with Direct Current loads but can also be used with Alternating Currents.
- Silver plating on the main contacts as standard with 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
Existing Applications Only
The following products are available for existing applications only, for each product a replacement is listed for use in new applications.
- Type
- Main Terminal
- Interrupted
- Uninterrupted
- Configuration
- Replacement Contactor
- Type: SW600
- Main Terminal: Busbar
- Interrupted: -
- Uninterrupted: 600A
- Configuration: NO - SP - ST
- Replacement Contactor: SW560
- Primarily for use with Direct Current loads but can also be used with Alternating Currents
- Designed for use in telecommunication and power distribution applications where an uninterrupted load is switched
- Silver plating on the main contacts as standard with 6.3mm spade coil connections or flying leads
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations)

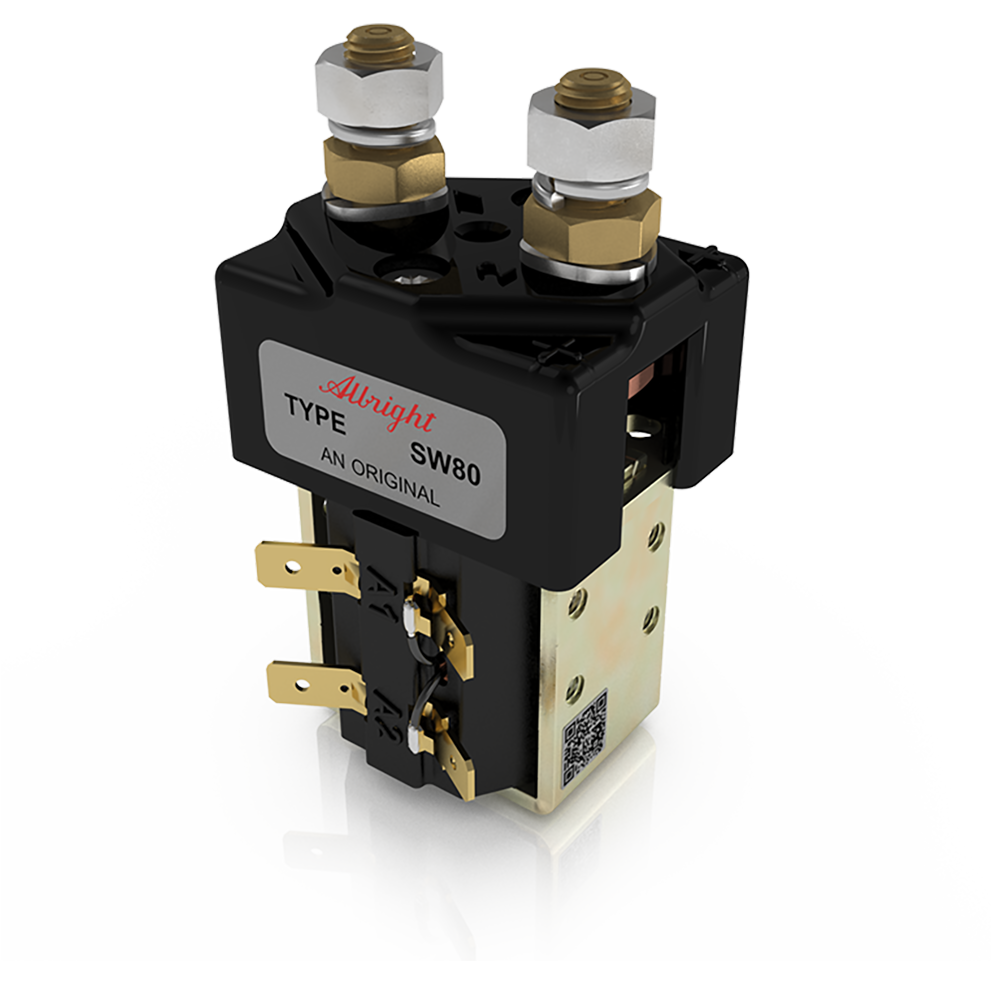

View Product- Type: TS53P
- Main Terminal: Male Stud
- Interrupted: -
- Uninterrupted: -
- Configuration: SW80
- Replacement Contactor: SW80
Obsolete – Not Available
The following products are no longer manufactured and are therefore considered obsolete, where available a replacement Albright Contactor which is manufactured has been listed. Please consult our Technical Department in the first instance for advice on a suitable alternative for the obsolete product you require.
- Type
- Main Terminal
- Interrupted
- Uninterrupted
- Configuration
- Replacement Contactor
- Type: SW70A
- Main Terminal: -
- Interrupted: -
- Uninterrupted: -
- Configuration: NO - SP - ST
- Replacement Contactor: SW180
