- Designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults.
- Primarily intended for use with battery powered vehicles they are also suitable for use with static power systems.
- Capable of safely rupturing full load battery currents in the event of an emergency.

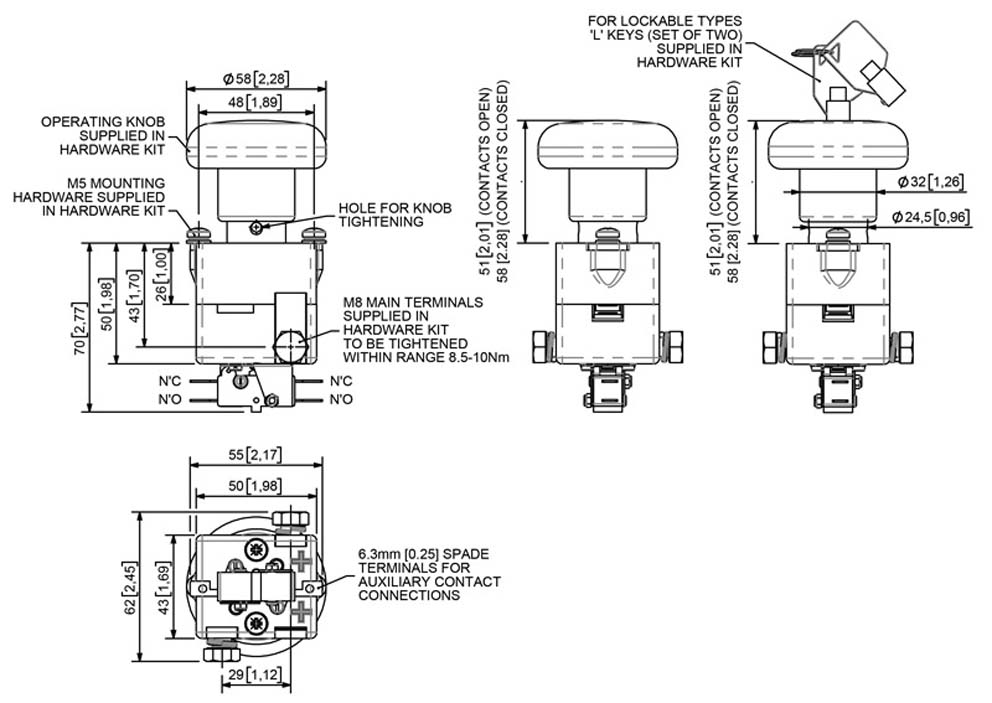

- Secured with supplied M5 posidrive mounting screws.

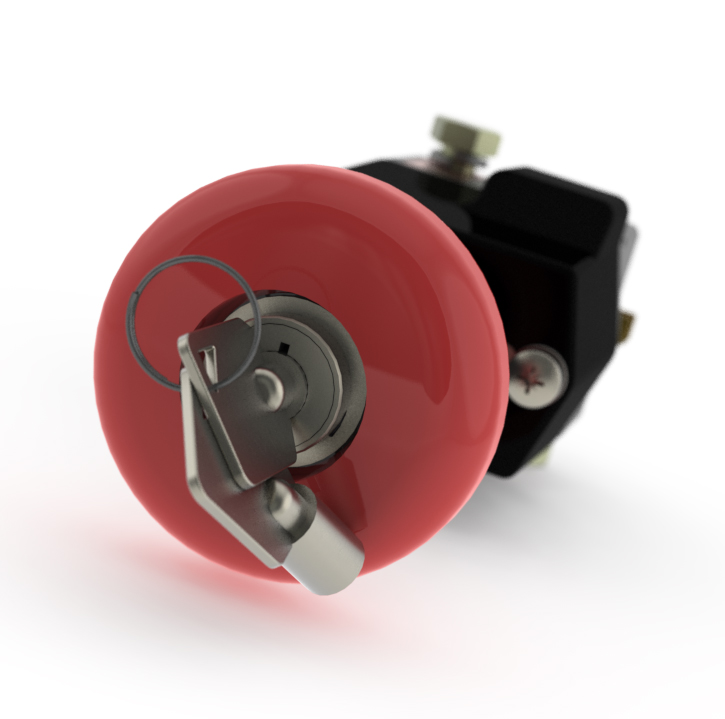

- Lockable versions feature a key
Precautions:
When fitted with magnetic blowouts the polarity marked on the contact housing must be observed when connecting the main terminals. Ensure that the switches are installed in a position where heavy arcs emanating from the switch cannot damage or electrically jump across to adjacent parts. The switch is to be used to rupture current in an emergency or as a no-load isolator.
Do not use as a regular On-Load Switching Device.
Spare Parts – Please consult our Technical Department, or download Spare Parts Sheet where available.

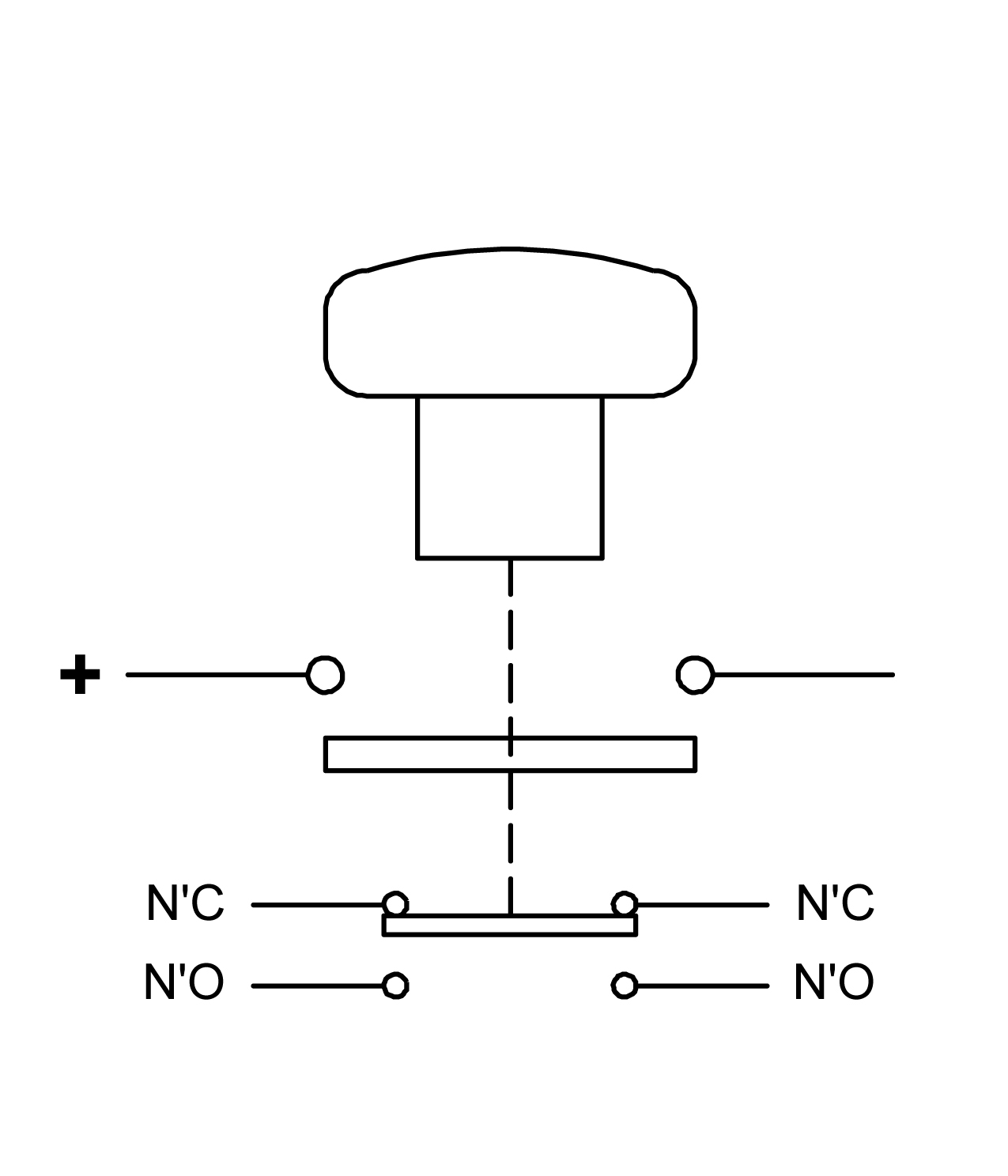

ED125 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | - | 125A |

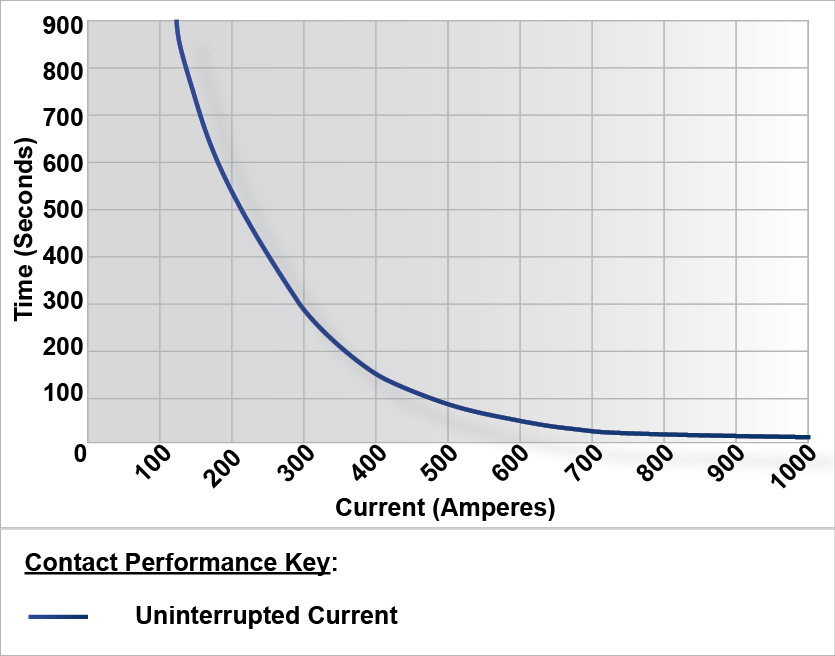

| Intermittent Current Rating: | ||
| 30% Duty | - | 230A |
| 40% Duty | - | 200A |
| 50% Duty | - | 175A |
| 60% Duty | - | 160A |
| 70% Duty | - | 150A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | 800A at 96V D.C. | |
| No Blowouts | 800A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | 96V |
| No Blowouts | - | 48V |
| Typical Voltage Drop per pole across New Contacts at 125A | 40mV | |
| Mechanical Durability | >10,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >0 - 0V | |
ED125 Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| Auxiliary | |
| Blowouts | |
| Contact Tip | |
| Enclosed Top Cover | |
| Fixed Contact Terminal | |
| Lockable | |
| Manual Override | |
| Mounting |
