- Designed for Direct Current loads, including motors typically used on electric vehicles such as industrial trucks.
- Developed for both interrupted and uninterrupted loads, the SW185 is suitable for switching Resistive, Capacitive and Inductive loads.

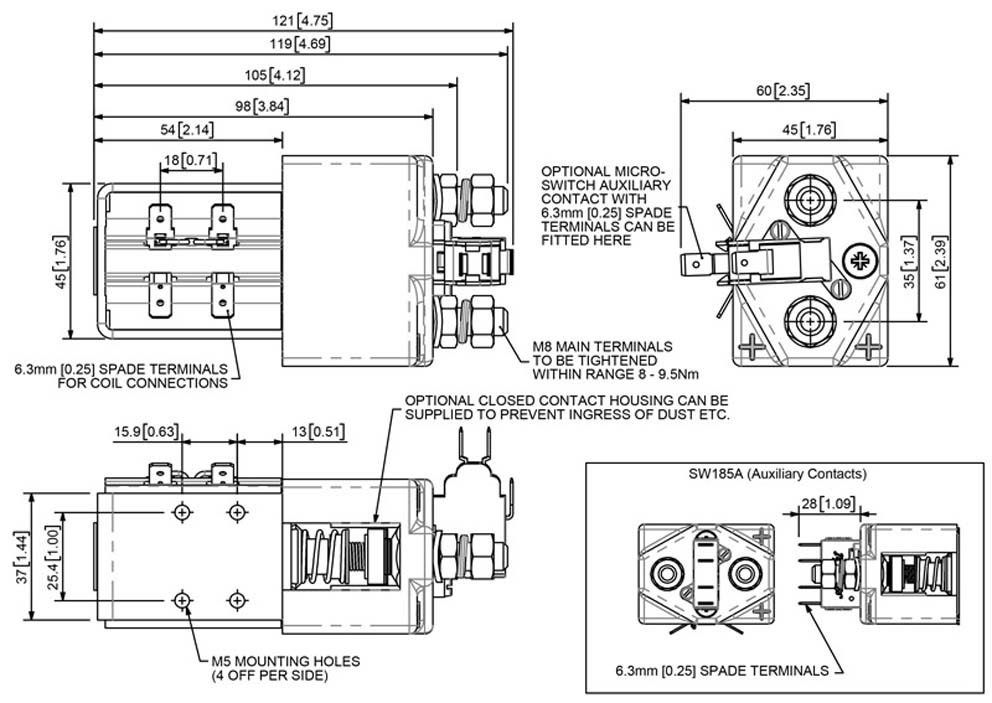

- M8 stud main terminals and 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
Note Normally Closed contacts are not suited to make and break load.
Spare Parts – Please consult our Technical Department, or download Spare Parts Sheet where available.

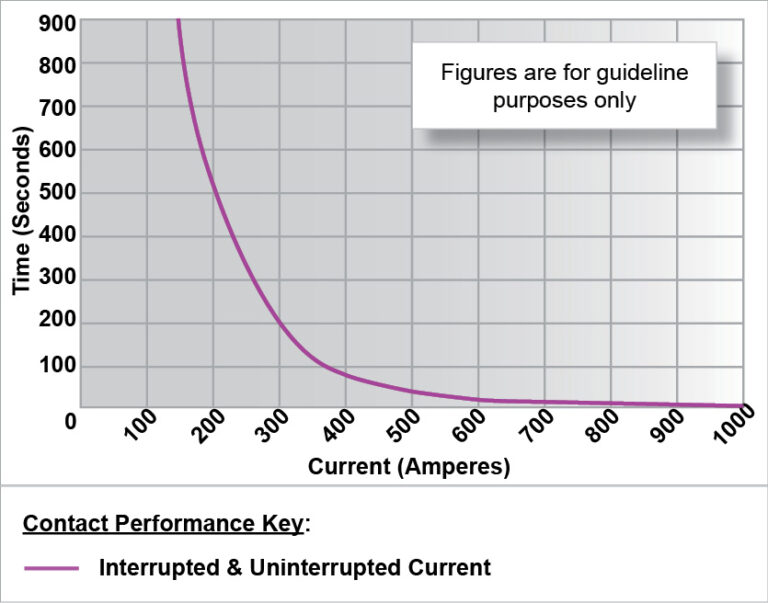

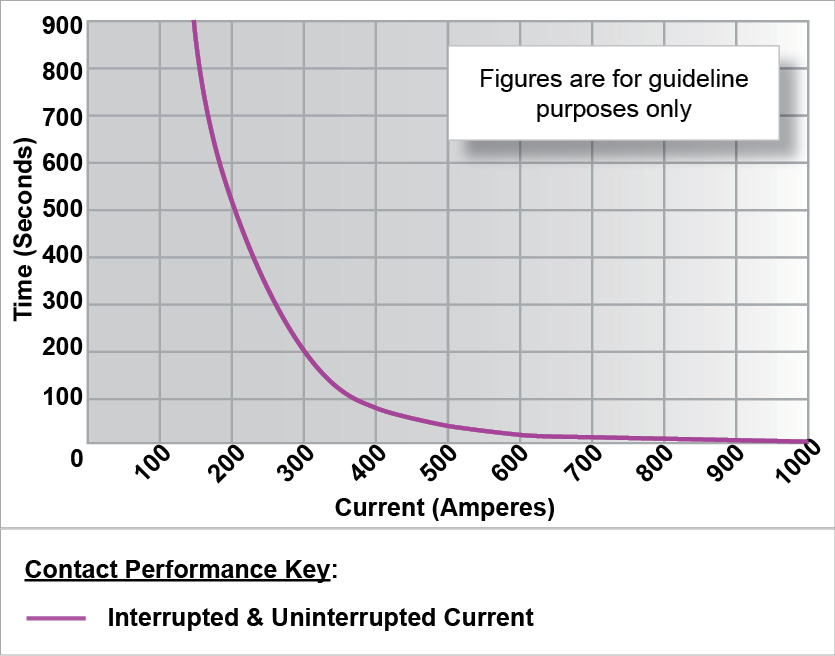

SW185 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | 150A | 150A |
| Intermittent Current Rating: | ||
| 30% Duty | 275A | 275A |
| 40% Duty | 235A | 235A |
| 50% Duty | 210A | 210A |
| 60% Duty | 195A | 195A |
| 70% Duty | 180A | 180A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | 1000A at 96V D.C. | |
| No Blowouts | 1000A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | 96V | 96V |
| No Blowouts | 48V | 48V |
| Typical Voltage Drop per pole across New Contacts at 150A | 30mV | |
| Mechanical Durability | >5,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 240V | |
SW185 Features
Click on an optional feature to automatically add this selection to the enquiry form below

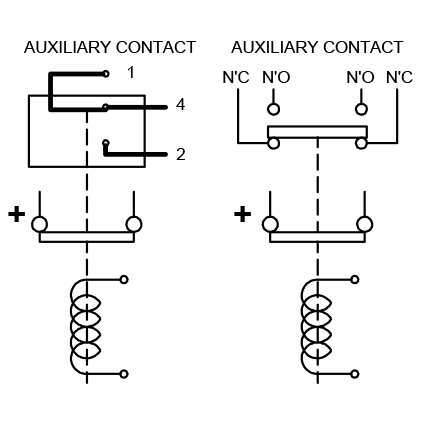

| Component | Configurations |
|---|---|
| Auxiliary | |
| Blowouts | |
| Coil Suppression | |
| Coil Termination | |
| Contact Tip | |
| Enclosed Top Cover | |
| Fixed Contact Terminal | |
| Mounting | |
| Steel Shroud EE | |
| Vacuum Impregnation |
