- Designed for Direct Current Loads where where infrequent switching is specified, typical applications include in line contactors and Power Distribution Systems.
- Developed for Uninterrupted current loads the RU280P is suitable for switching Resistive, Capacitive and Inductive loads.
- Sealed to IP66 thus offering greater protection against adverse environments such as water or dust.

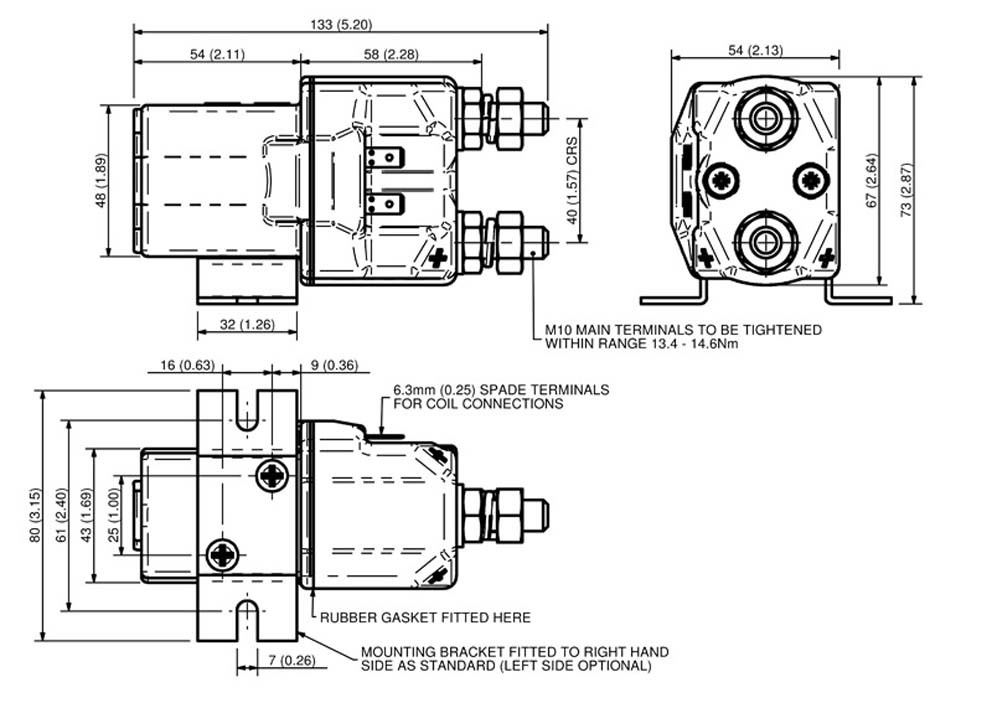

- M10 stud main terminals and 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
Spare Parts are not available – this contactor is deemed non-serviceable.
RU280P Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | 350A | 350A |

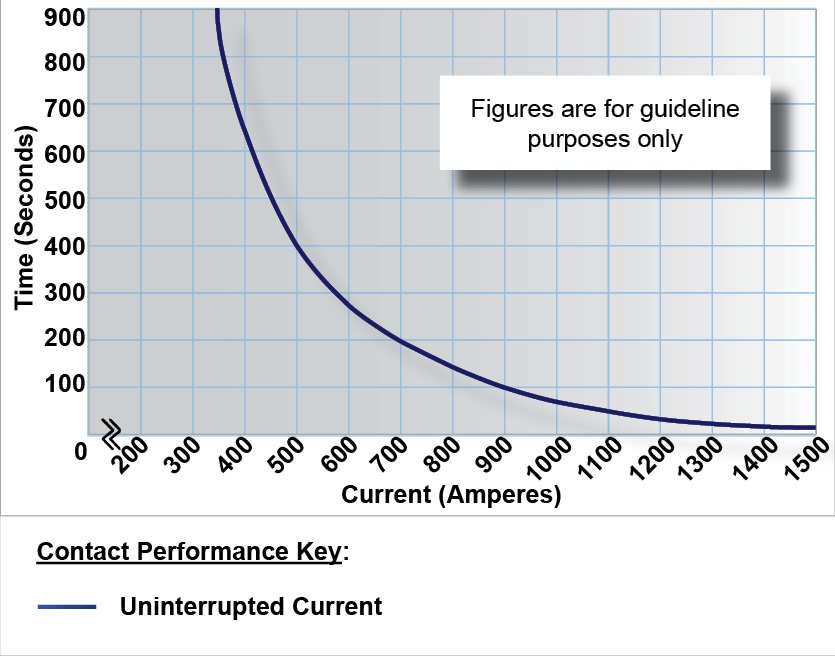

| Intermittent Current Rating: | ||
| 30% Duty | 640A | 640A |
| 40% Duty | 555A | 555A |
| 50% Duty | 495A | 495A |
| 60% Duty | 450A | 450A |
| 70% Duty | 420A | 420A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | 800A at 80V D.C. | |
| No Blowouts | 1050A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | 525A at 96V D.C. | |
| No Blowouts | 525A at 60V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | 96V | 96V |
| No Blowouts | 60V | 60V |
| Typical Voltage Drop per pole across New Contacts at 350A | 40mV | |
| Mechanical Durability | >3,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 240V | |
RU280P Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| Blowouts | |
| Coil Suppression | |
| Coil Termination | |
| Contact Tip | |
| Enclosed Top Cover | |
| Fixed Contact Terminal | |
| IP Rating | |
| Magnetic Latching | |
| Mounting |
