- Designed for direct current loads, typical applications include motors as used on electric vehicles such as industrial trucks.
- Developed for both interrupted and uninterrupted loads, the DC92P is suitable for switching Resistive, Capacitive and Inductive loads.

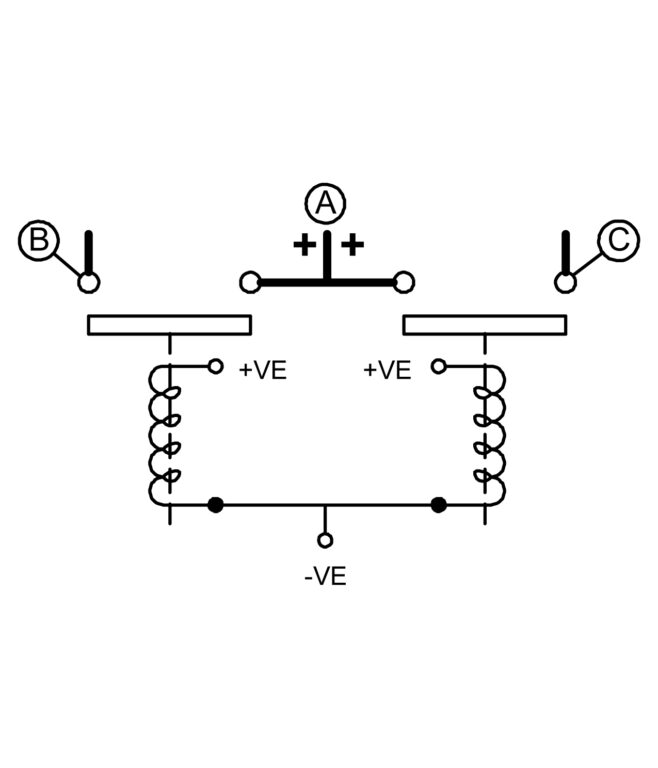

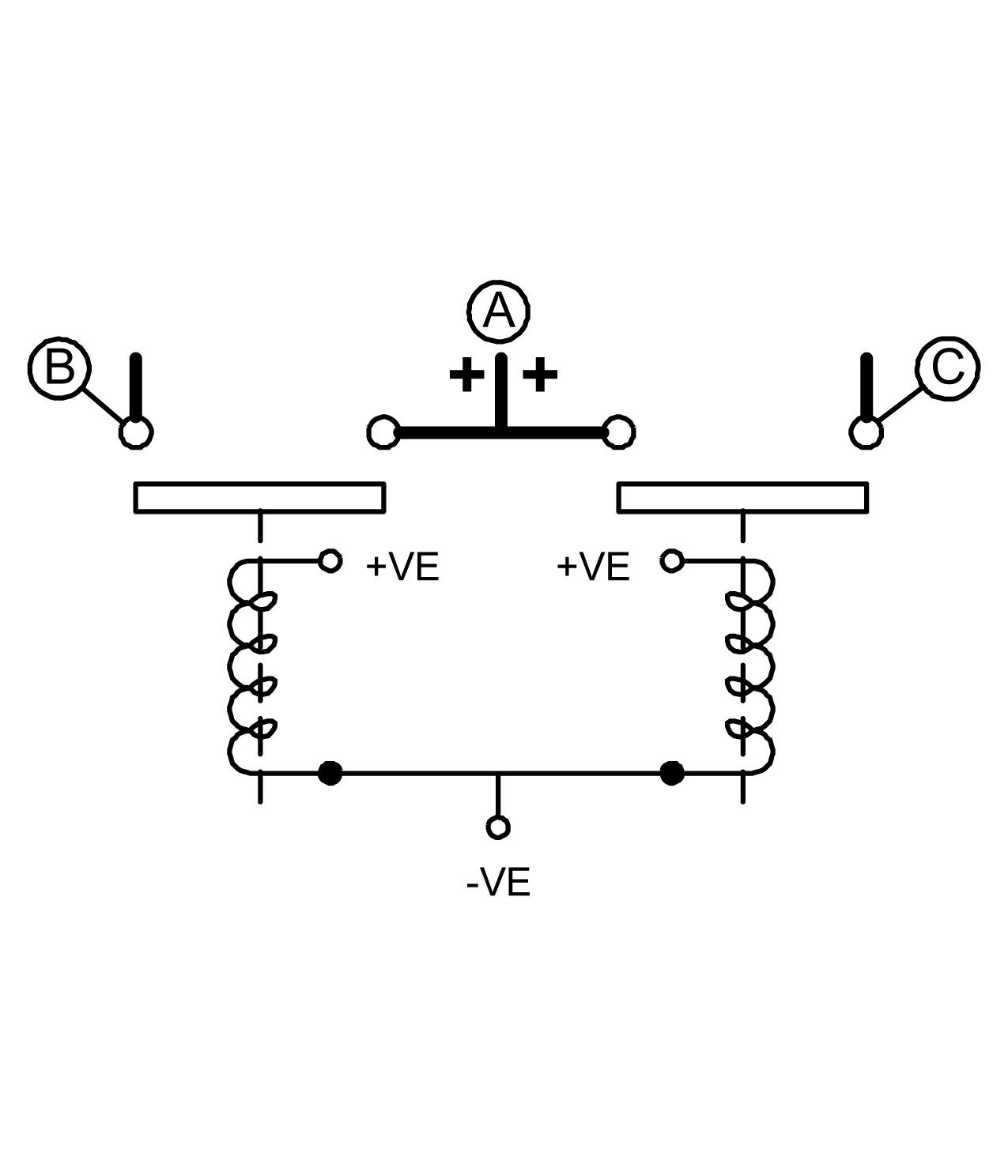

- Devised for motor reversing, the main contact circuit has a built in fail safe, so that if both coils are energised simultaneously the contact arrangement is open circuit
- Monoblock construction and sealed to IP66 thus offering greater protection against adverse environments such as water or dust.

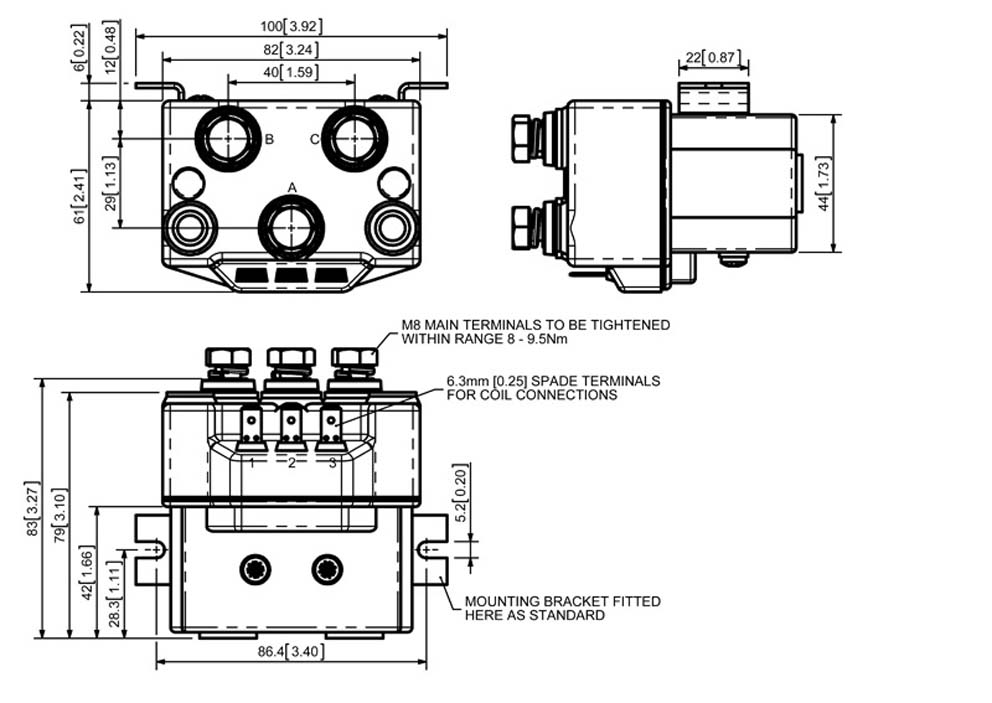

- M8 stud main terminals and 6.3mm spade coil connections.
Spare Parts are not available – this contactor is deemed non-serviceable.
DC92P Technical Info

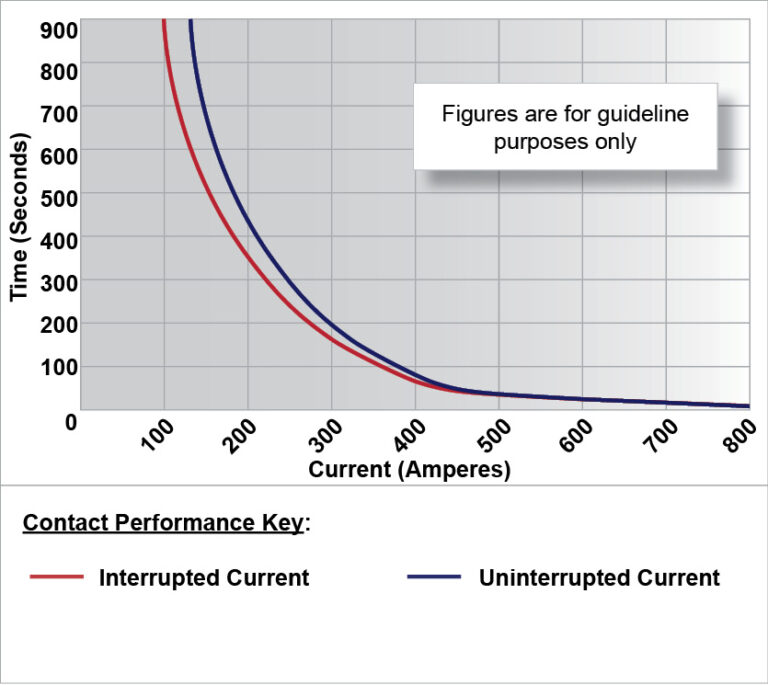

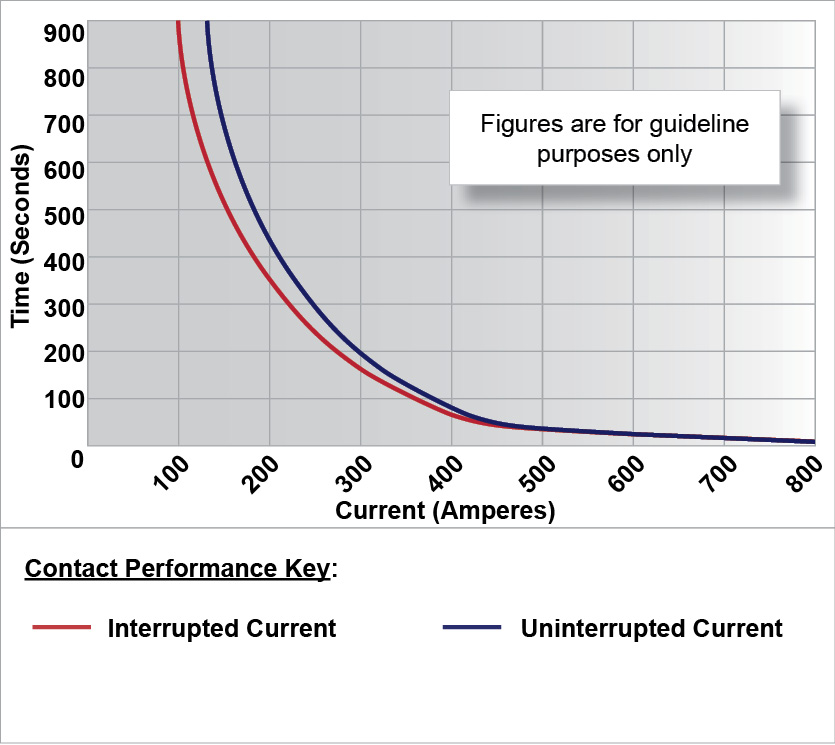

| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | 100A | 125A |
| Intermittent Current Rating: | ||
| 30% Duty | 185A | 230A |
| 40% Duty | 160A | 200A |
| 50% Duty | 140A | 175A |
| 60% Duty | 130A | 160A |
| 70% Duty | 120A | 150A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | 800A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | 48V | 48V |
| Typical Voltage Drop per pole across New Contacts at 100A | 40mV | |
| Mechanical Durability | >5,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 240V | |
