- Designed for direct current loads, typical applications include electric vehicles such as industrial trucks.
- Developed for both interrupted and uninterrupted loads, the SW92 is suitable for switching Resistive, Capacitive and Inductive loads.

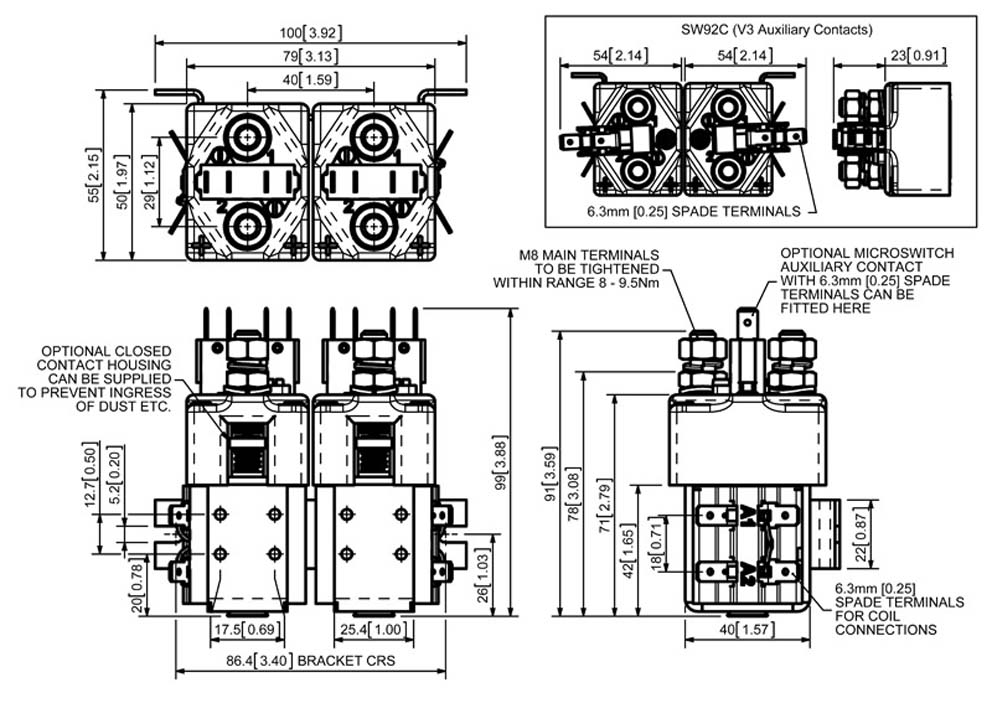

- M8 stud main terminals and 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
Spare Parts – Please consult our Technical Department, or download Spare Parts Sheet where available.
SW92 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | 100A | 125A |

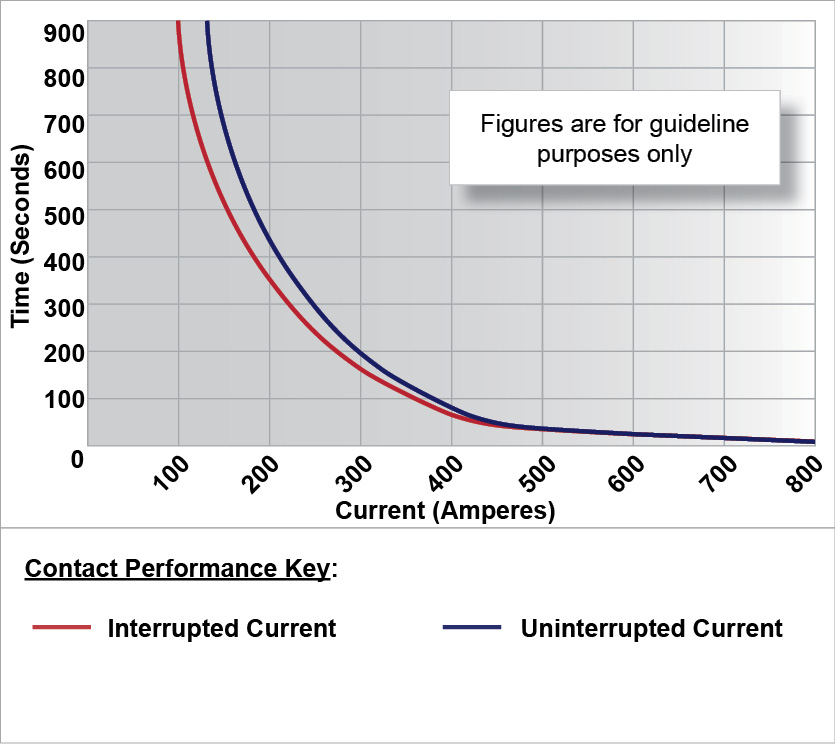

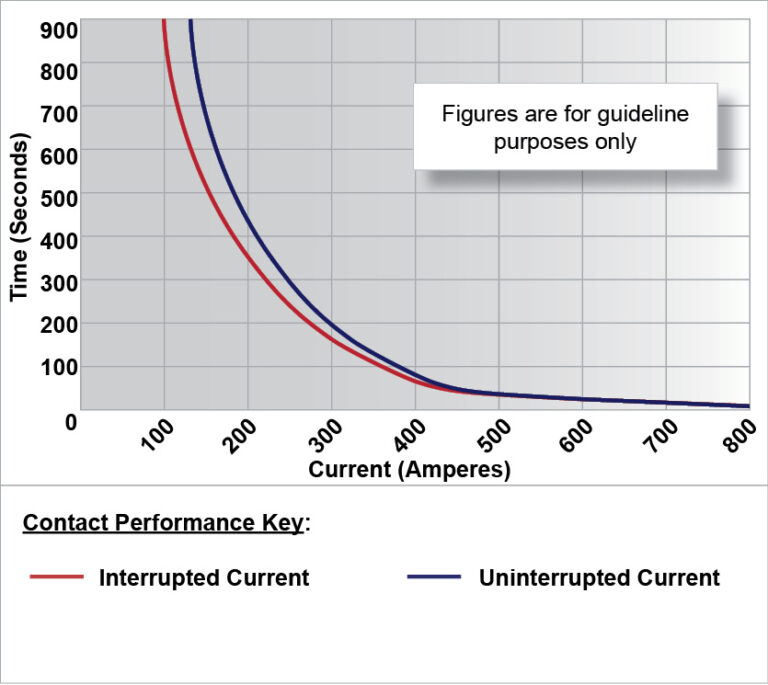

| Intermittent Current Rating: | ||
| 30% Duty | 185A | 230A |
| 40% Duty | 160A | 200A |
| 50% Duty | 140A | 175A |
| 60% Duty | 130A | 160A |
| 70% Duty | 120A | 150A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | 800A at 80V D.C. | |
| No Blowouts | 800A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | 96V | 96V |
| No Blowouts | 48V | 60V |
| Typical Voltage Drop per pole across New Contacts at 100A | 40mV | |
| Mechanical Durability | >5,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 240V | |
SW92 Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| AC Rectifier | |
| Armature Cap | |

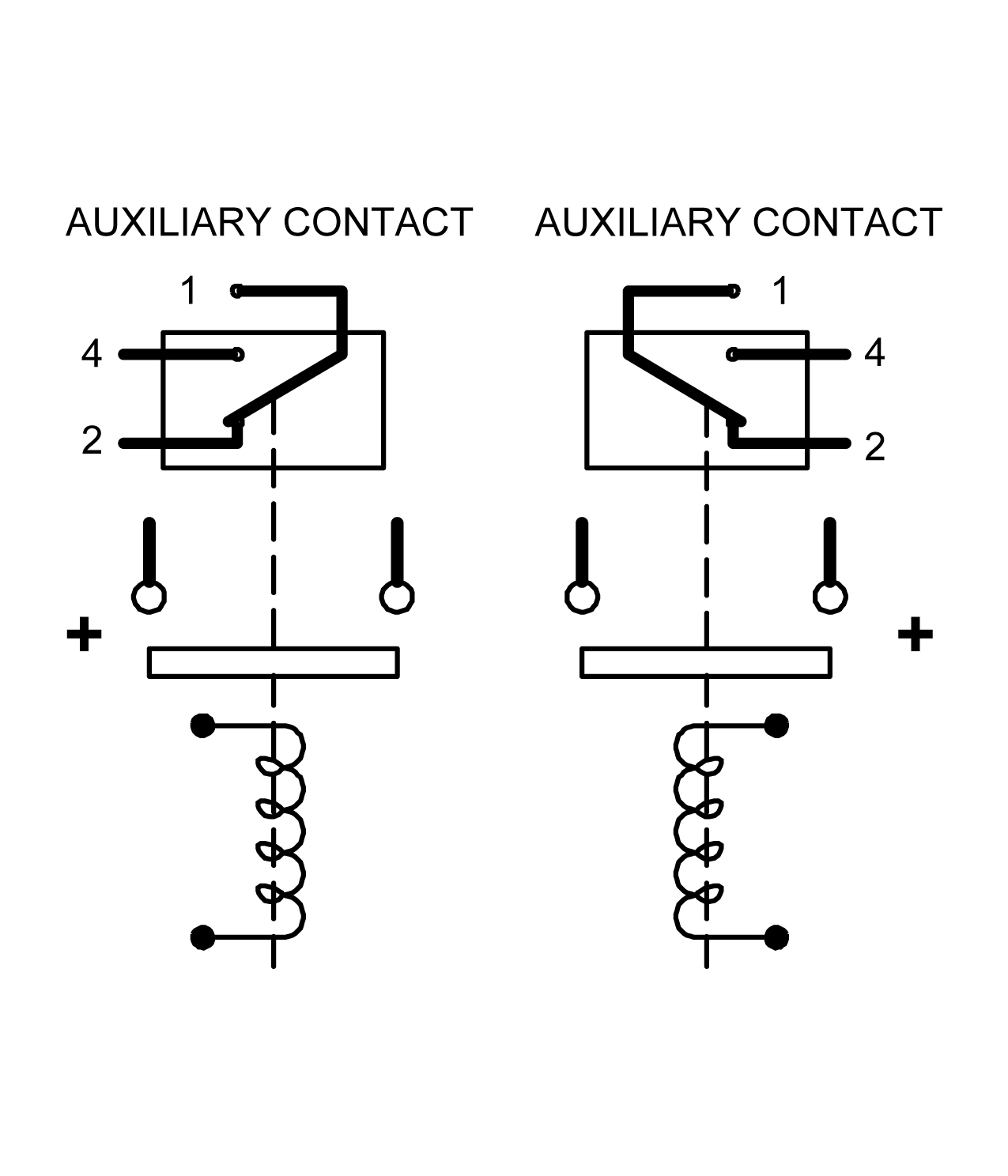

| Auxiliary | |
| Blowouts | |
| Coil Suppression | |
| Coil Termination | |
| Contact Tip | |
| Enclosed Top Cover | |
| Fixed Contact Terminal | |
| Magnetic Latching | |
| Manual Override | |
| Mounting | |
| Vacuum Impregnation |
