- Designed for use in telecommunications and power distribution applications where an uninterrupted load is switched
- Primarily for use with Direct Current loads but can also be used with Alternating Currents
- Silver plating on the main contacts as standard with 6.3mm spade coil connections or flying leads

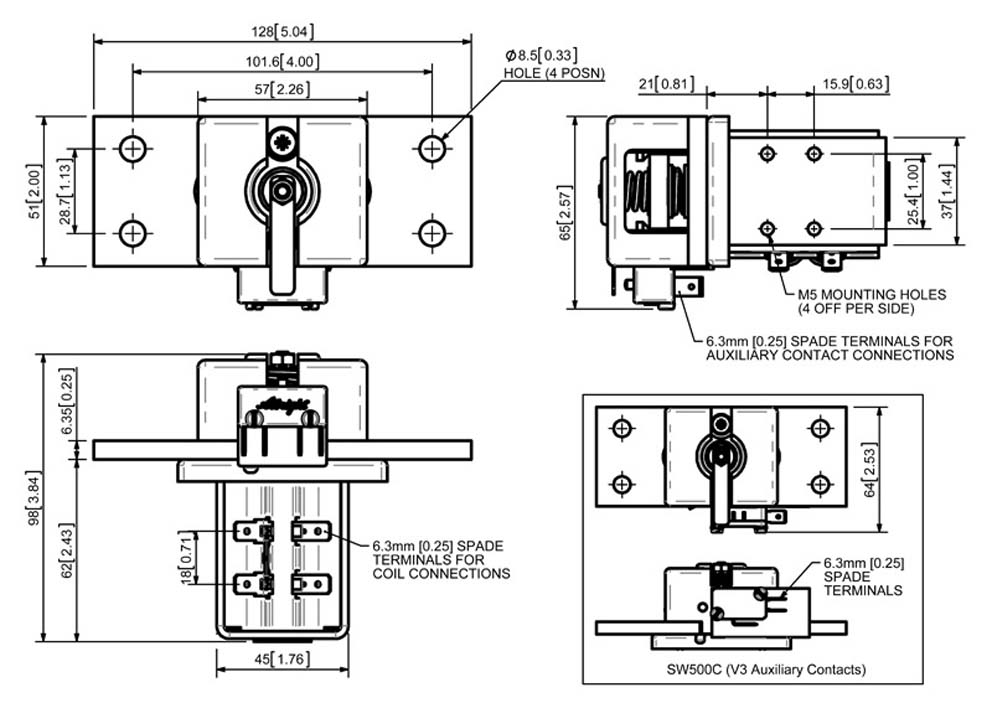

- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations)
Spare Parts are not available – this contactor is deemed non-serviceable.
SW500 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | - | 500A |

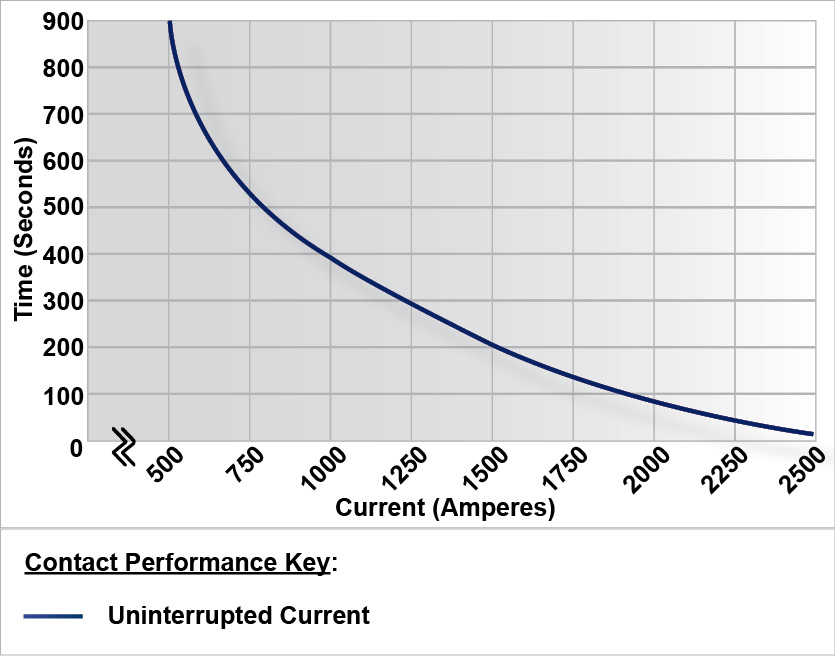

| Intermittent Current Rating: | ||
| 30% Duty | - | 915A |
| 40% Duty | - | 790A |
| 50% Duty | - | 705A |
| 60% Duty | - | 645A |
| 70% Duty | - | 600A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 750A at 60V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | - | 60V |
| Typical Voltage Drop per pole across New Contacts at 500A | 50mV | |
| Mechanical Durability | >1,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 240V | |
SW500 Features
Click on an optional feature to automatically add this selection to the enquiry form below

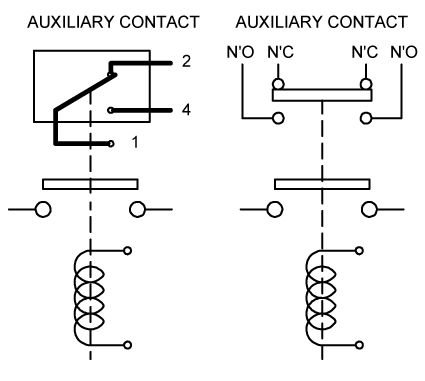

| Component | Configurations |
|---|---|
| Auxiliary | |
| Coil Suppression | |
| Coil Termination | |
| Contact Tip | |
| Fixed Contact Terminal | |
| Magnetic Latching | |
| Manual Override | |
| Mounting | |
| Vacuum Impregnation |
