- Developed primarily for use with Uninterrupted Direct Current loads but can also be used with Alternating Currents
- Designed for use within telecommunication and power distribution applications.

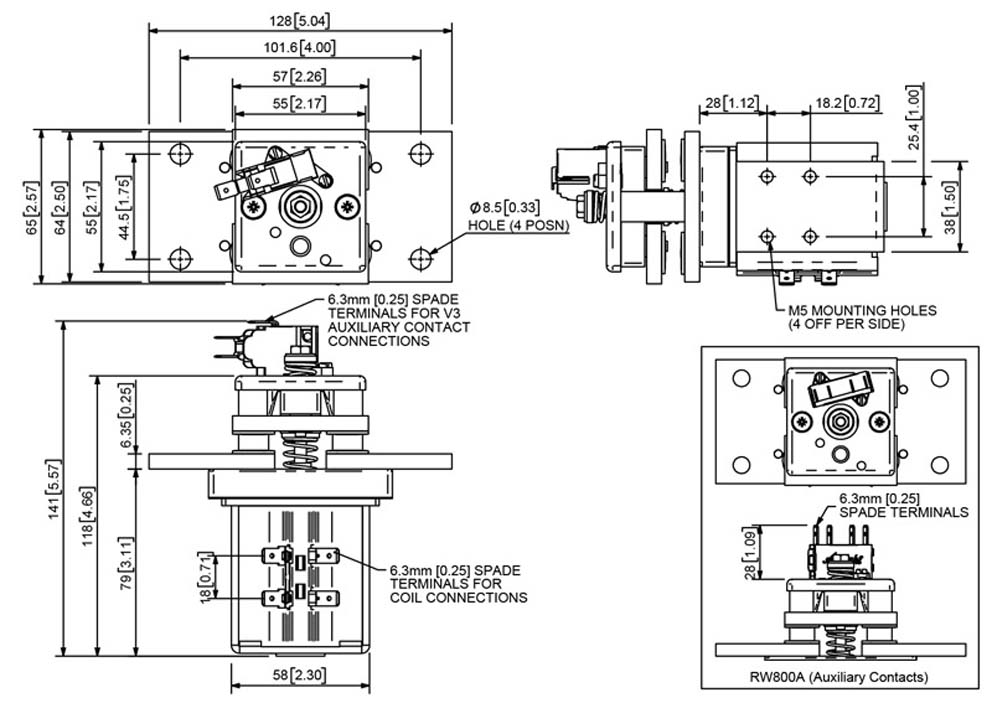

- 6.3mm spade coil connections or flying leads.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations)
Spare Parts are not available – this contactor is deemed non-serviceable.
RW800 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | - | 800A |

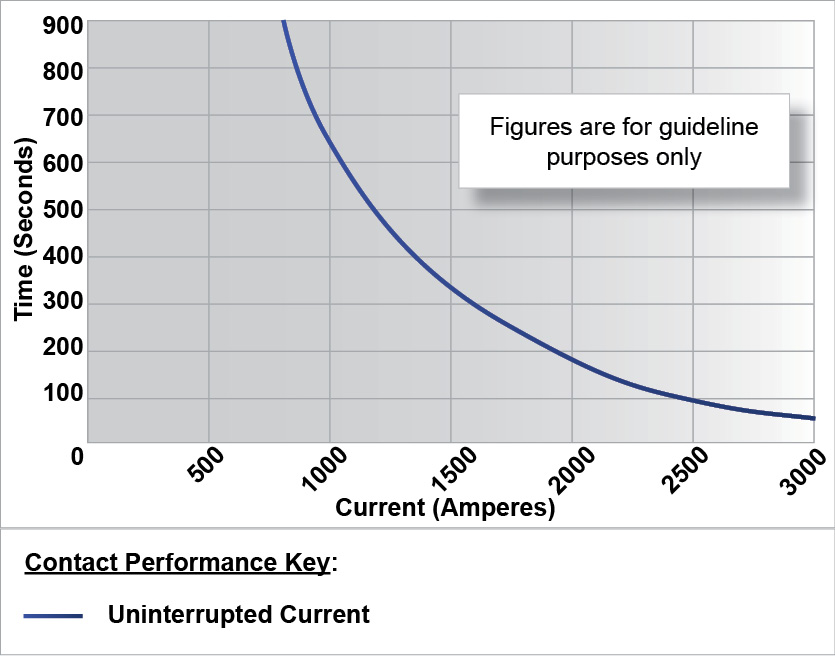

| Intermittent Current Rating: | ||
| 30% Duty | - | 1460A |
| 40% Duty | - | 1265A |
| 50% Duty | - | 1130A |
| 60% Duty | - | 1035A |
| 70% Duty | - | 955A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 1200A at 60V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | - | 60V |
| Typical Voltage Drop per pole across New Contacts at 800A | 50mV | |
| Mechanical Durability | >1,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 240V | |
RW800 Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| AC Rectifier | |

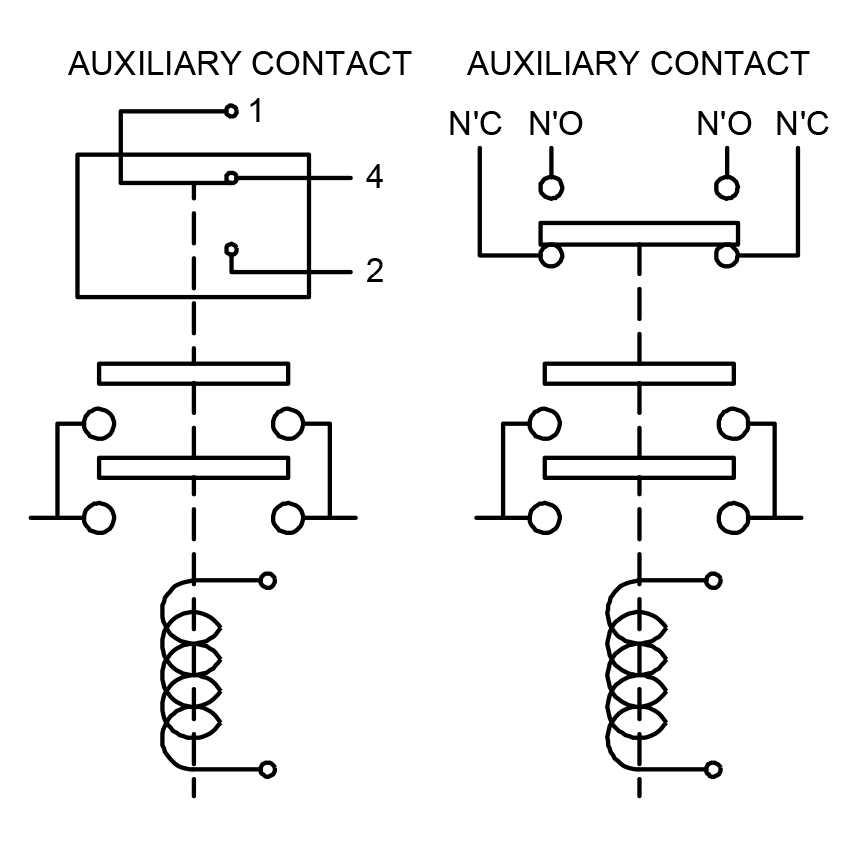

| Auxiliary | |
| Coil Suppression | |
| Coil Termination | |
| Contact Tip | |
| Fixed Contact Terminal | |
| Magnetic Latching | |
| Manual Override | |
| Mounting | |
| Silver Plating | |
| Vacuum Impregnation |
