- High Voltage Contactor with voltages up to 1,000 Volts and a current thermal rating up to 500 amps
- Full hermetic sealing and non-polarity sensitive main contacts
- Applications include automotive (vehicle and charging), renewable energy and battery packs.

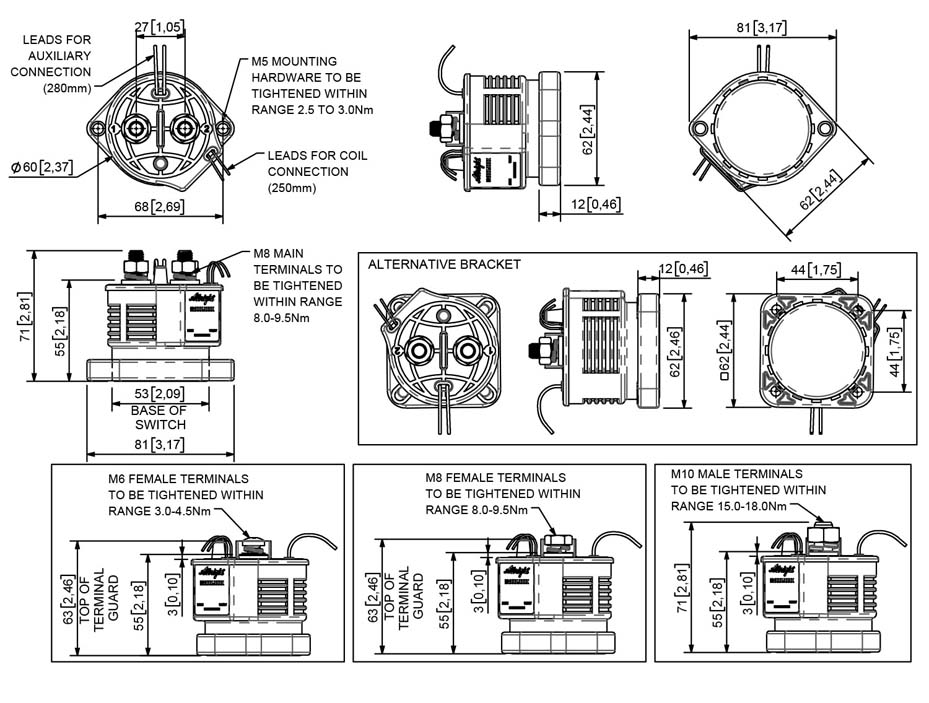

- Variety of Stud Main Terminals available with M8 fitted as Standard.
- Coil Reverse Polarity protection with coil options PWM and Magnetic Latching and coil suppression available.
- Patent Approved Adjustable Bracket and Silver Contacts.
Spare Parts are not available – this contactor is deemed non-serviceable.
HV500 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | 250A | 500A |
| Intermittent Current Rating: | ||
| 30% Duty | 455A | 915A |
| 40% Duty | 395A | 790A |
| 50% Duty | 355A | 705A |
| 60% Duty | 325A | 645A |
| 70% Duty | 300A | 600A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 2000A at 500V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | 500V | 500V |
| Typical Voltage Drop per pole across New Contacts at 100A | 30mV | |
| Mechanical Durability | >1,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >12 - 96V | |
HV500 Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| Auxiliary | |
| Blowouts | |
| Coil Termination | |
| Fixed Contact Terminal | |
| IP Rating | |
| Non Polarity Sensitive |
