- Designed for Direct Current loads and compatible with modern electronic control systems, suitable for use in applications such as battery powered winches, vehicle mounted cranes and small electric vehicles.
- Developed for Interrupted and Uninterrupted applications, and suited for switching Inductive, Resistive and Capacitive loads.
- Monoblock construction and sealed to IP67 offering greater protection against adverse environments such as water or dust and allowing for water immersion up to 1 metre.

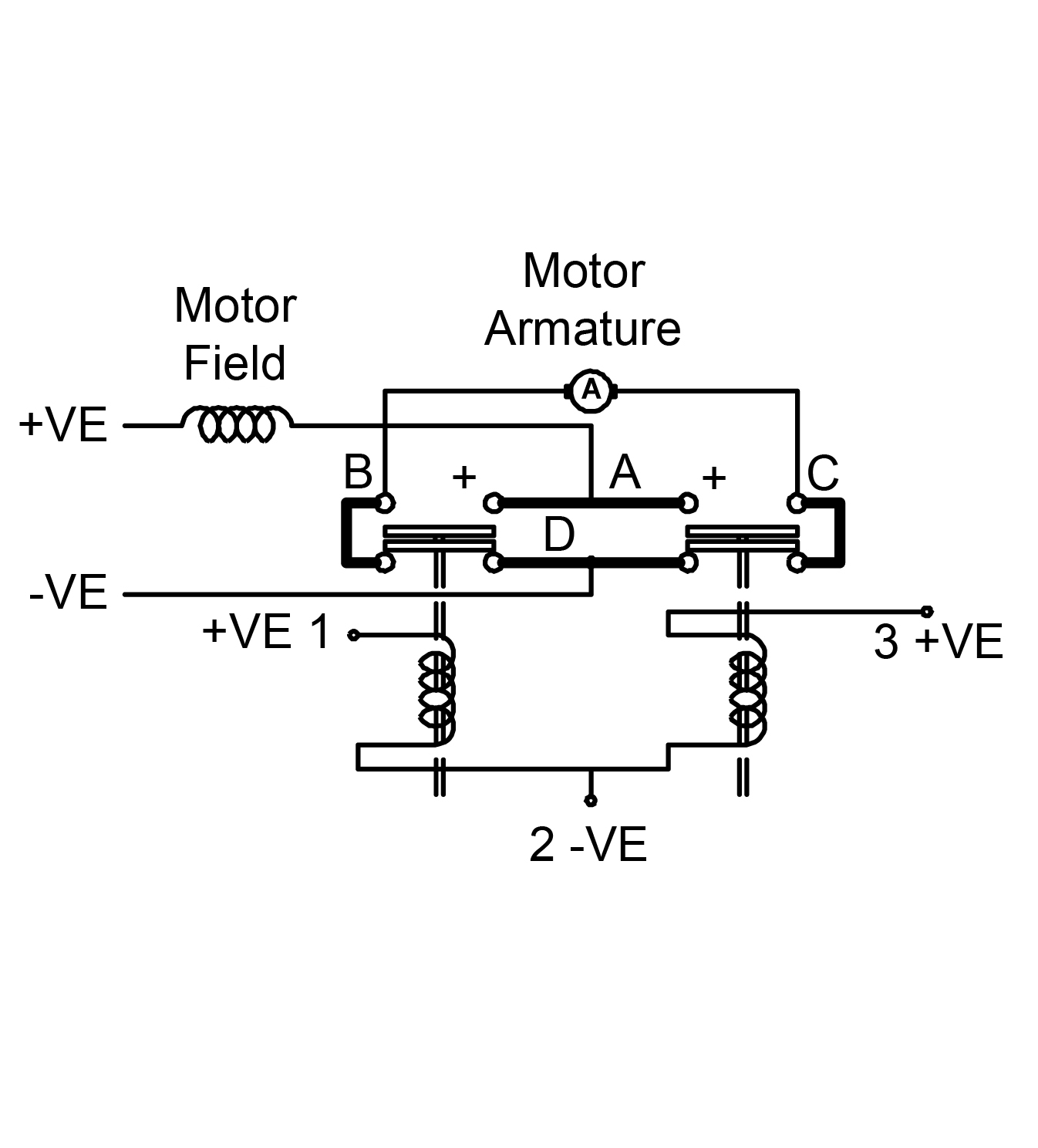

- Devised for motor reversing, the main contact circuit has a built in fail safe, so that if both coils are energised simultaneously the contact arrangement is open circuit.

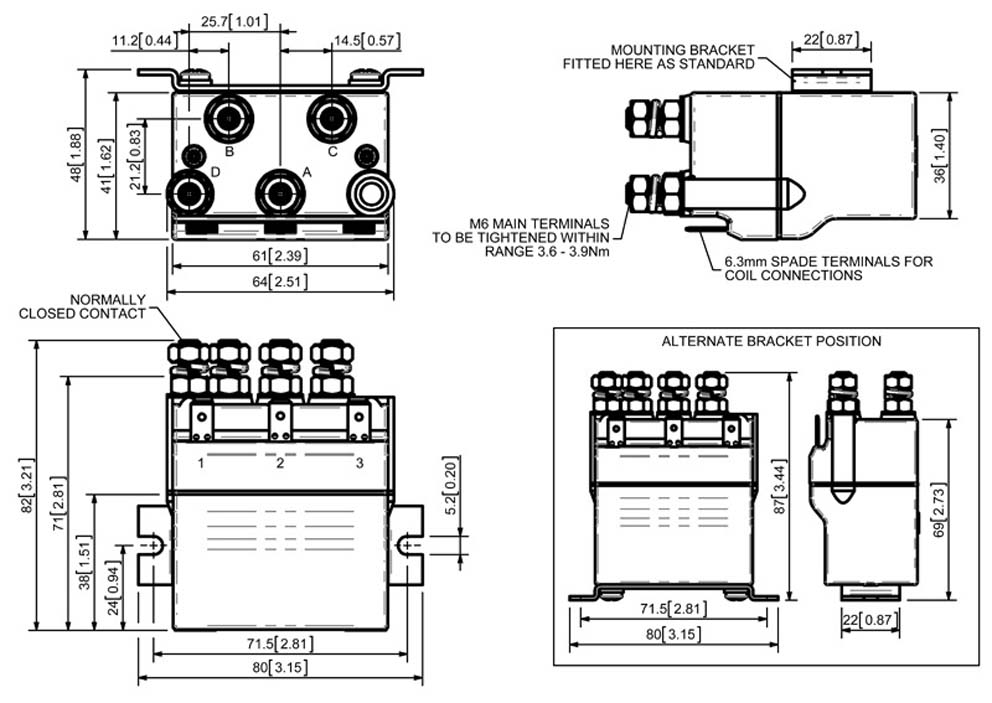

- M6 main stud terminals and 6.3mm spades coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
Spare Parts are not available – this contactor is deemed non-serviceable.
DC66P Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | 80A | 80A |

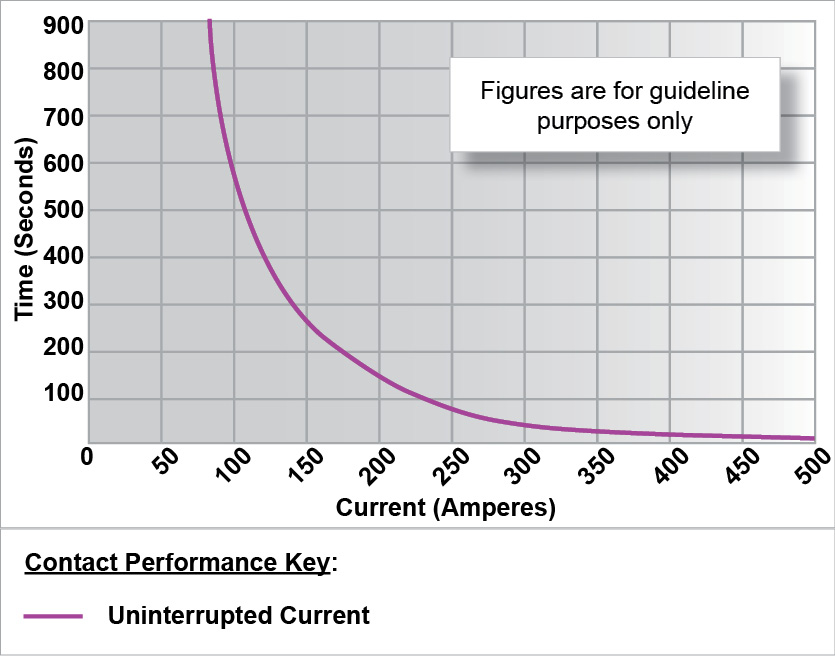

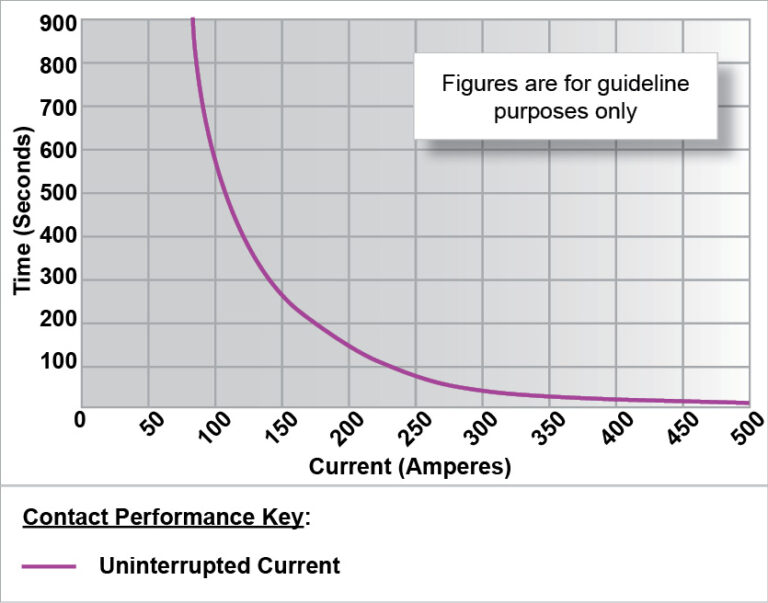

| Intermittent Current Rating: | ||
| 30% Duty | 145A | 145A |
| 40% Duty | 125A | 125A |
| 50% Duty | 115A | 115A |
| 60% Duty | 105A | 105A |
| 70% Duty | 95A | 95A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | 500A at 60V D.C. | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 120A at 48V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | 48V | 48V |
| Typical Voltage Drop per pole across New Contacts at 80A | 40mV | |
| Mechanical Durability | >3,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 130V | |
DC66P Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| Coil Suppression | |
| Coil Termination | |
| Enclosed Top Cover | |
| Fixed Contact Terminal | |
| IP Rating | |
| Mounting |
