DC182P | Albright International LTD

Designed for direct current loads, particularly motors as used on electric winches, a monoblock construction it is compatible with modern electronic control systems.
Developed for both interrupted and uninterrupted loads, the DC88P is suitable for switching Resistive, Capacitive and Inductive loads.

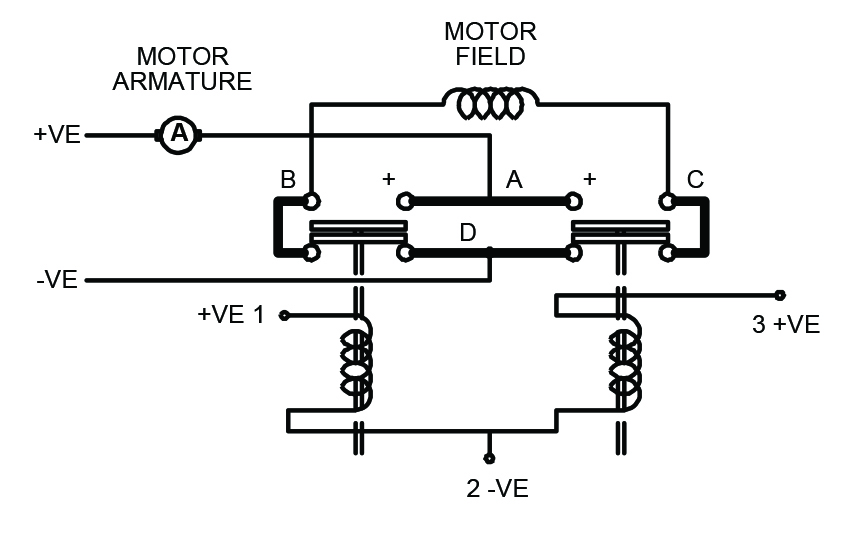

The main contact circuit, designed for motor reversing, has a built in failsafe, so that if both coils are energised simultaneously the circuit remains open.
Sealed to IP67 thus offering greater protection against adverse environments such as water or dust.

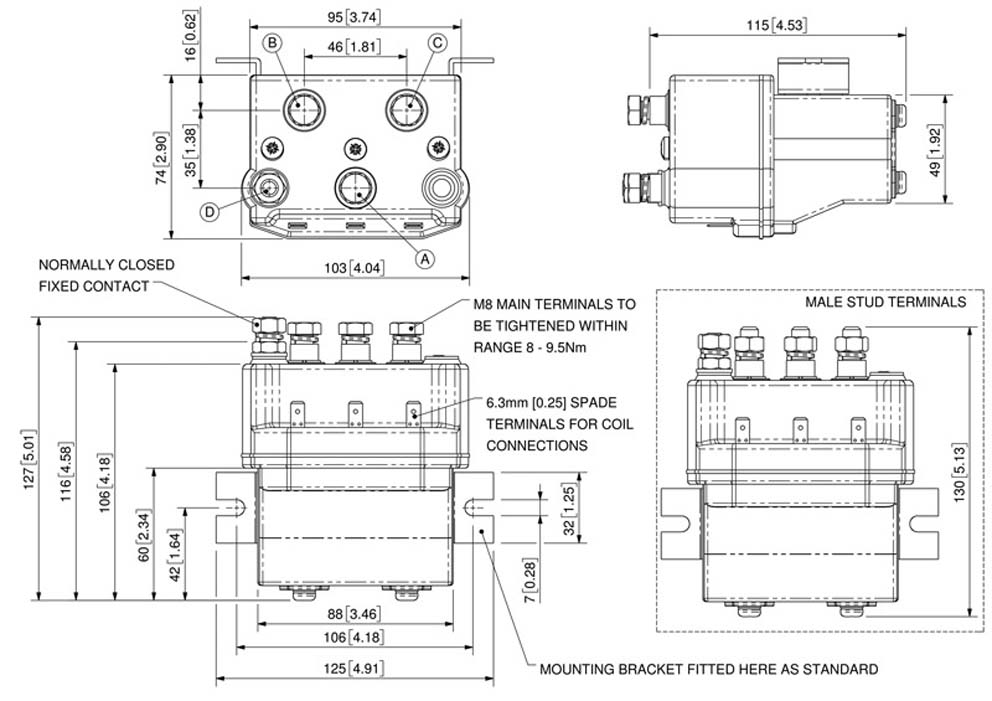

M8 main stud terminals and coil connections are by means of 6.3mm spades.
Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).

Spare Parts are not available – this contactor is deemed non-serviceable.

DC182P Technical Info

Application	InterruptedRating (I_th)	UninterruptedRating (I_th)
Thermal Current Rating	150A	150A

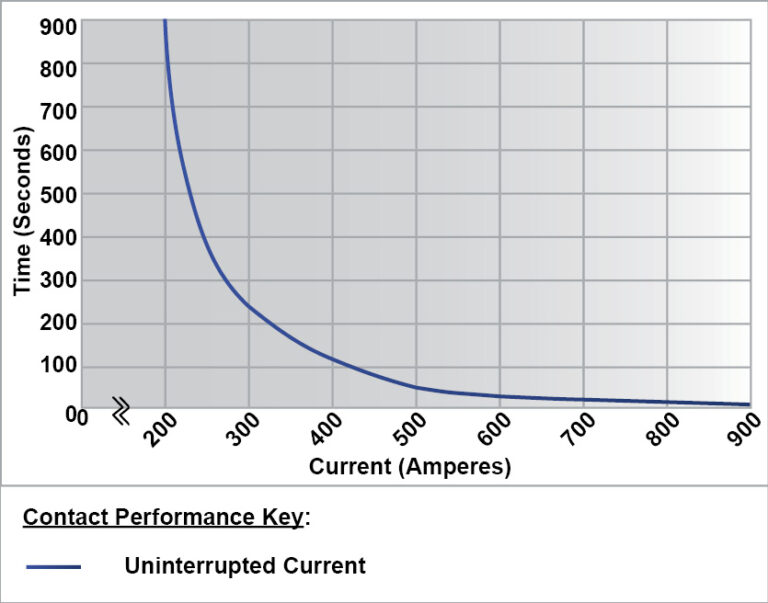

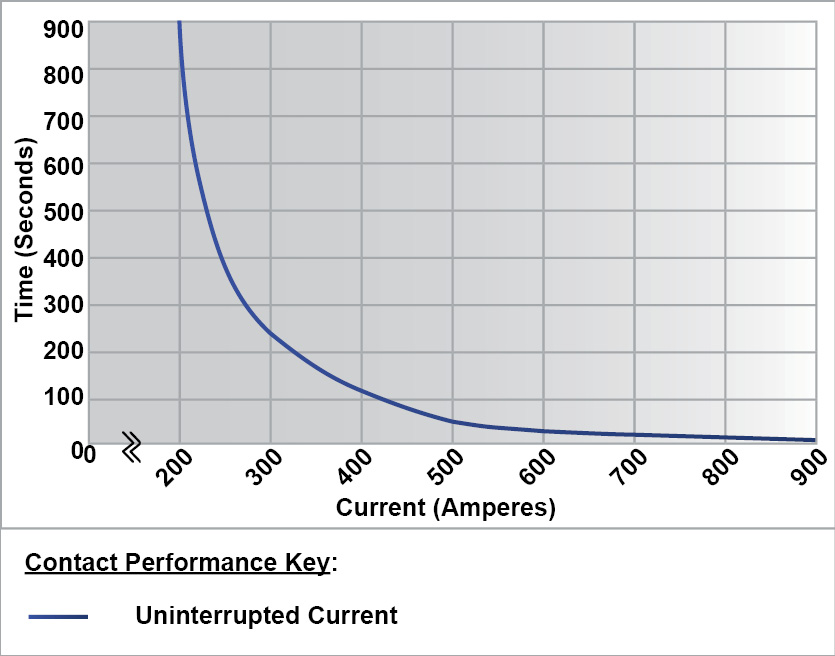

Intermittent Current Rating:
30% Duty	275A	275A
40% Duty	235A	235A
50% Duty	210A	210A
60% Duty	195A	195A
70% Duty	180A	180A
Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*)
Blowouts	-
No Blowouts	1000A at 48V D.C.
Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*)
Blowouts	-
No Blowouts	-
Maximum Recommended Contact Voltages
Blowouts	-	-
No Blowouts	48V	48V
Typical Voltage Drop per pole across New Contacts at 150A	40mV
Mechanical Durability	>3,000,000 Cycles
Coil Voltage Available (Us) (Rectifier board required for A.C.)	>6 - 240V
