- Designed for Direct Current loads, typical applications include motors as used on small electric vehicles and hydraulic power packs.
- Developed for both interrupted and uninterrupted loads, the SU64 is suitable for switching Resistive, Capacitive and Inductive loads.

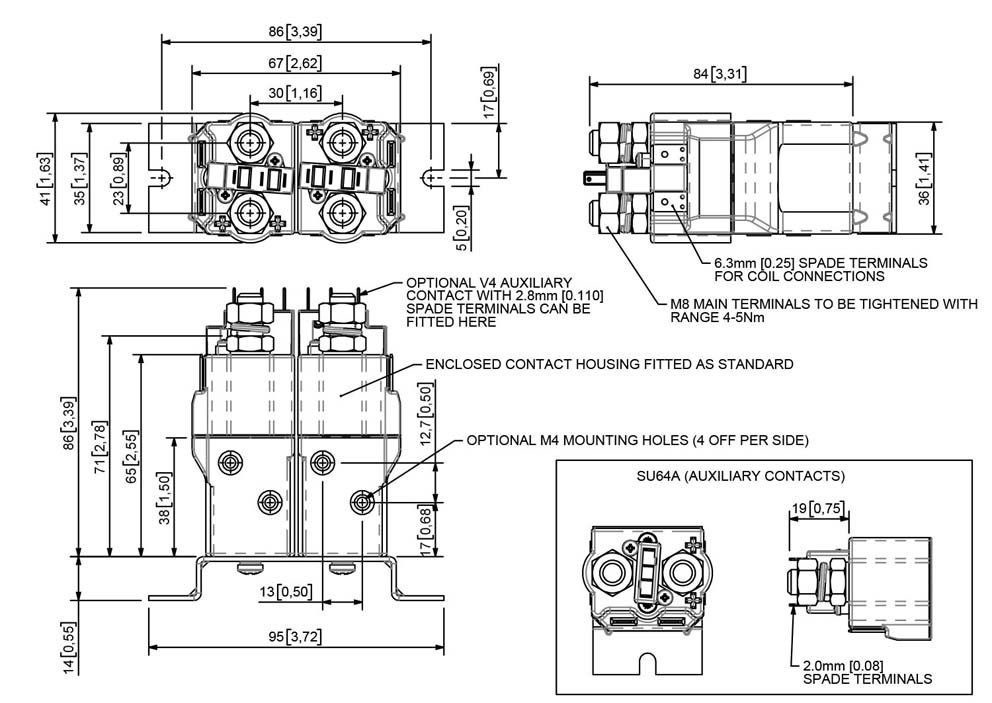

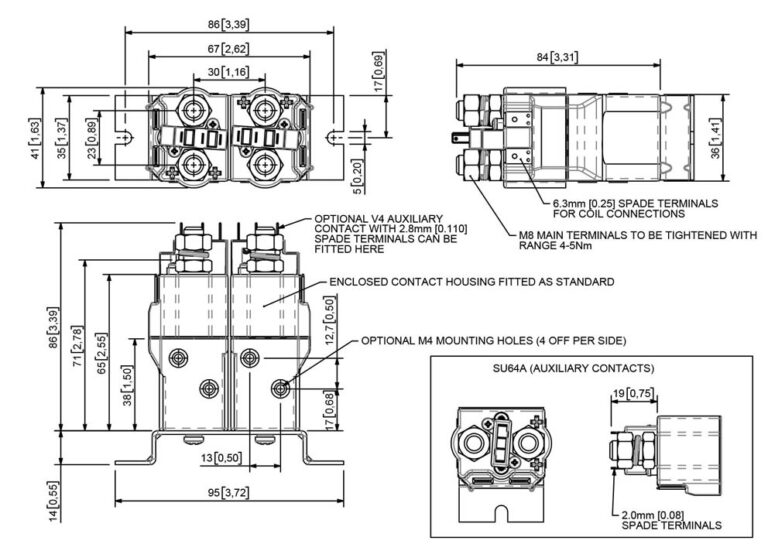

- M8 stud main terminals and 6.3mm spade coil connections.
- Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).
Spare Parts are not available – this contactor is deemed non-serviceable.
SU64 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | 100A | 100A |
| Intermittent Current Rating: | ||
| 30% Duty | 185A | 185A |
| 40% Duty | 160A | 160A |
| 50% Duty | 140A | 140A |
| 60% Duty | 130A | 130A |
| 70% Duty | 120A | 120A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | 500A at 96V D.C. | |
| No Blowouts | 500A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | 150A at 96V D.C. | |
| No Blowouts | 150A at 48V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | 96V | 96V |
| No Blowouts | 48V | 60V |
| Typical Voltage Drop per pole across New Contacts at 100A | 50mV | |
| Mechanical Durability | >3,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 130V | |
SU64 Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| Auxiliary | |
| Blowouts | |
| Coil Suppression | |
| Coil Termination | |
| Contact Tip | |
| Fixed Contact Terminal | |
| Magnetic Latching | |
| Mounting |
