Designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks.
Developed for both interrupted and uninterrupted loads, the DC88-1000P Type is suitable for switching Resistive, Capacitive and Inductive loads.
Monoblock construction and sealed to IP67 offering greater protection against adverse environments such as water or dust, and allowing for water immersion up to 1 metre.

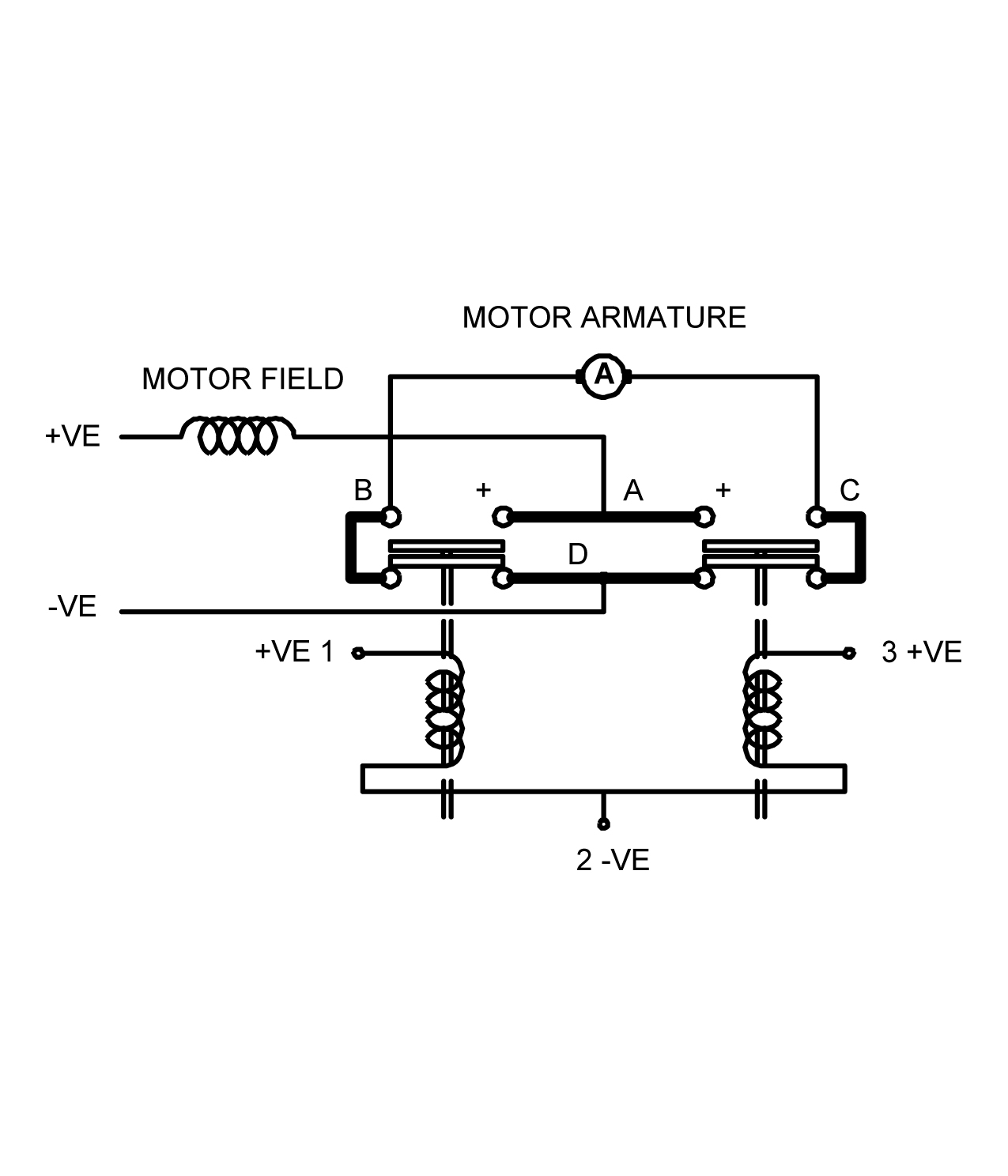

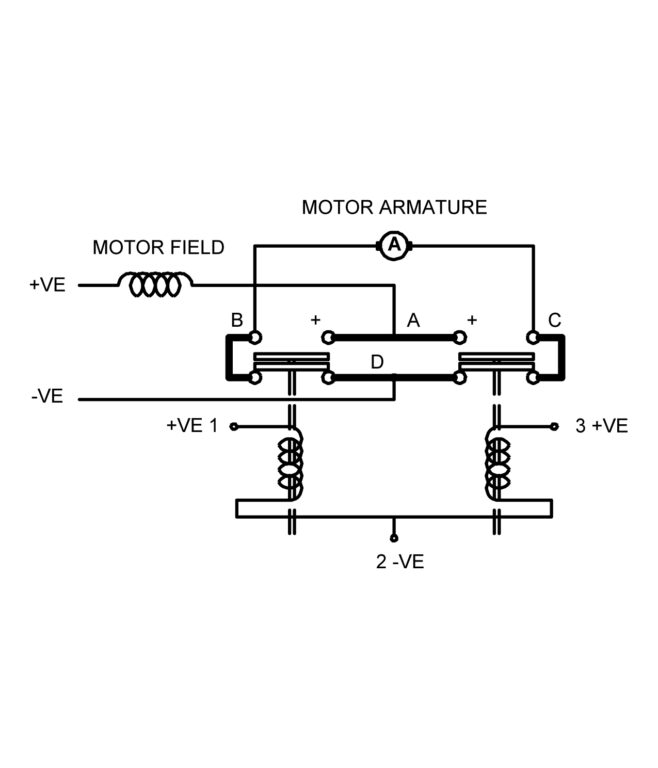

Devised for motor reversing, the main contact circuit has a built in fail safe, so that if both coils are energised simultaneously the contact arrangement is open circuit.

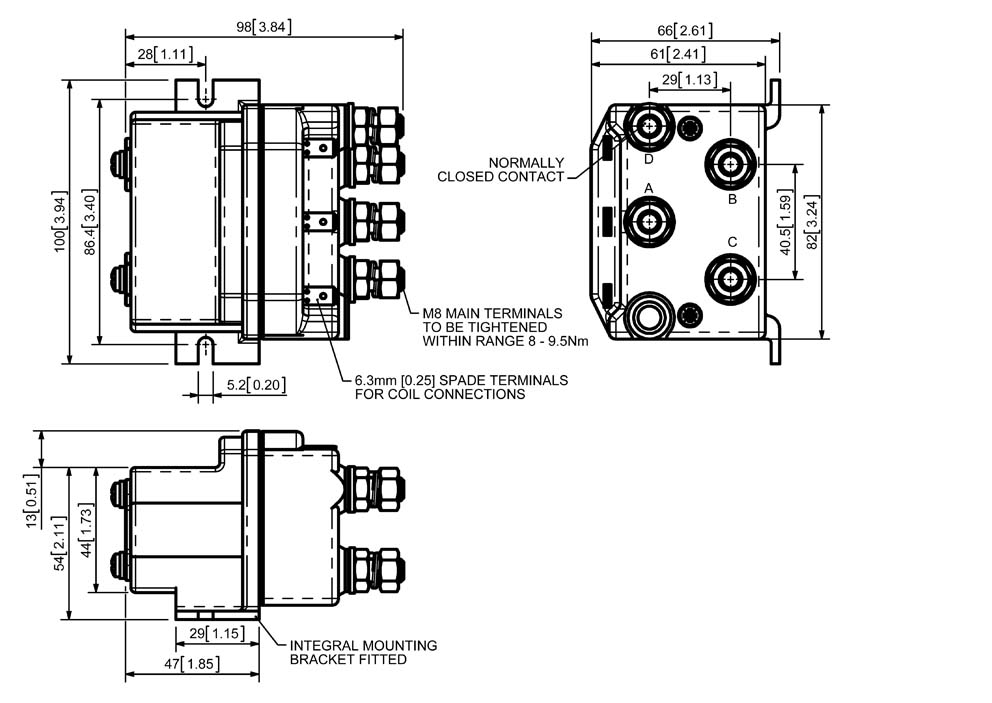

M8 stud main terminals and 6.3mm spade coil connections.
Adaptable Mounting options, in any orientation (seek technical advice for full mounting considerations).

Spare Parts are not available – this contactor is deemed non-serviceable.

DC88-1000P Technical Info

Application	InterruptedRating (I_th)	UninterruptedRating (I_th)
Thermal Current Rating	100A	100A

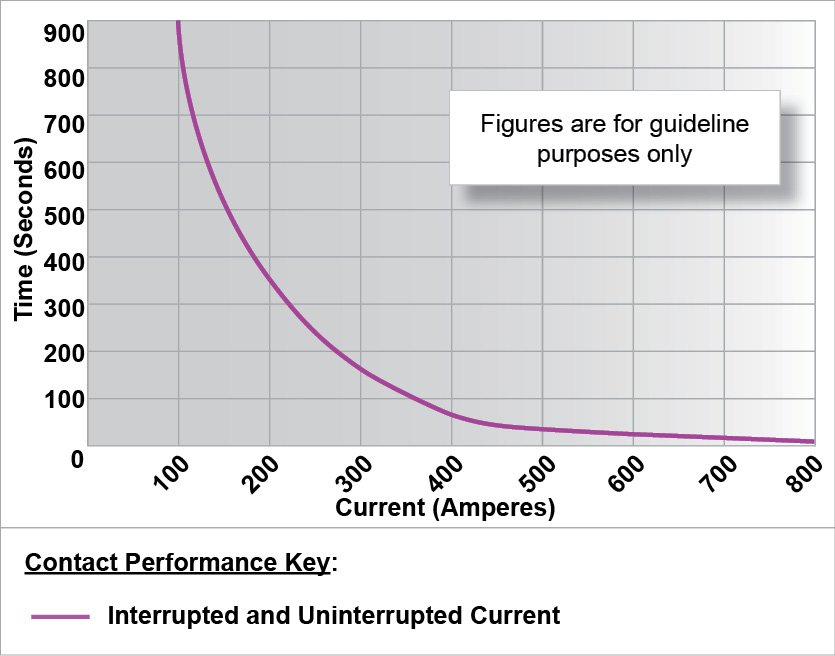

Intermittent Current Rating:
30% Duty	185A	185A
40% Duty	160A	160A
50% Duty	140A	140A
60% Duty	130A	130A
70% Duty	120A	120A
Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*)
Blowouts	-
No Blowouts	800A at 48V D.C.
Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*)
Blowouts	-
No Blowouts	-
Maximum Recommended Contact Voltages
Blowouts	-	-
No Blowouts	48V	48V
Typical Voltage Drop per pole across New Contacts at 100A	50mV
Mechanical Durability	>5,000,000 Cycles
Coil Voltage Available (Us) (Rectifier board required for A.C.)	>6 - 240V
