- Conçu pour les charges en courant continu où la commutation peu fréquente est spécifiée, les applications typiques incluent les contacteurs en ligne et les systèmes de distribution d’alimentation.
- Développé pour les charges de courant ininterrompu, le RW80 convient aux charges résistives, capacitives et inductives à commutation.

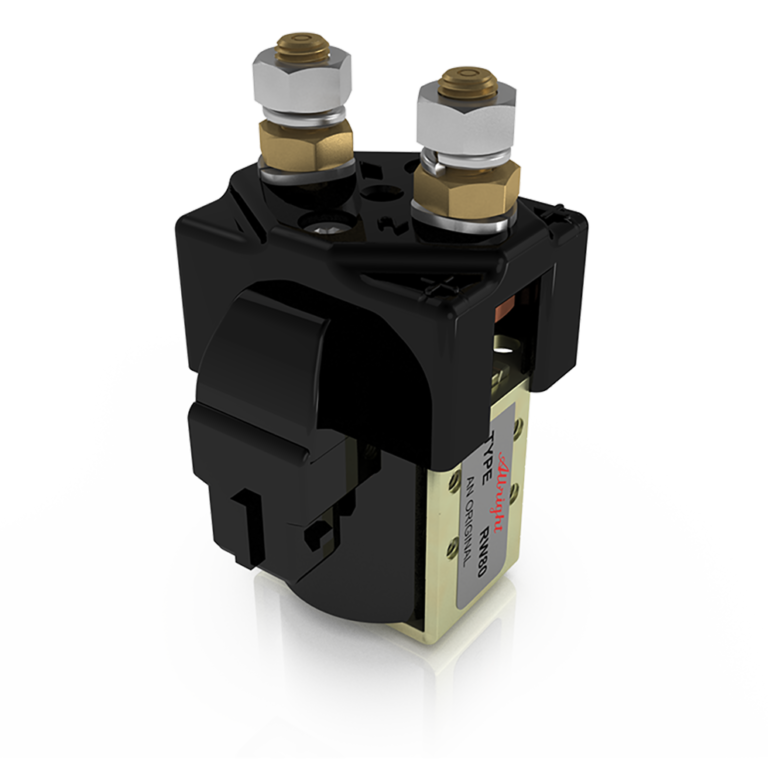

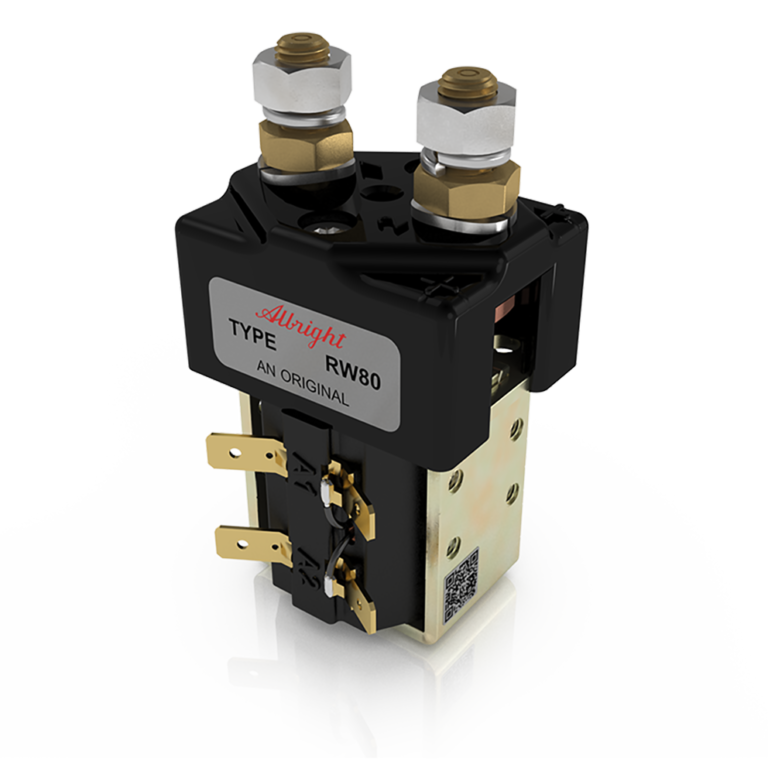

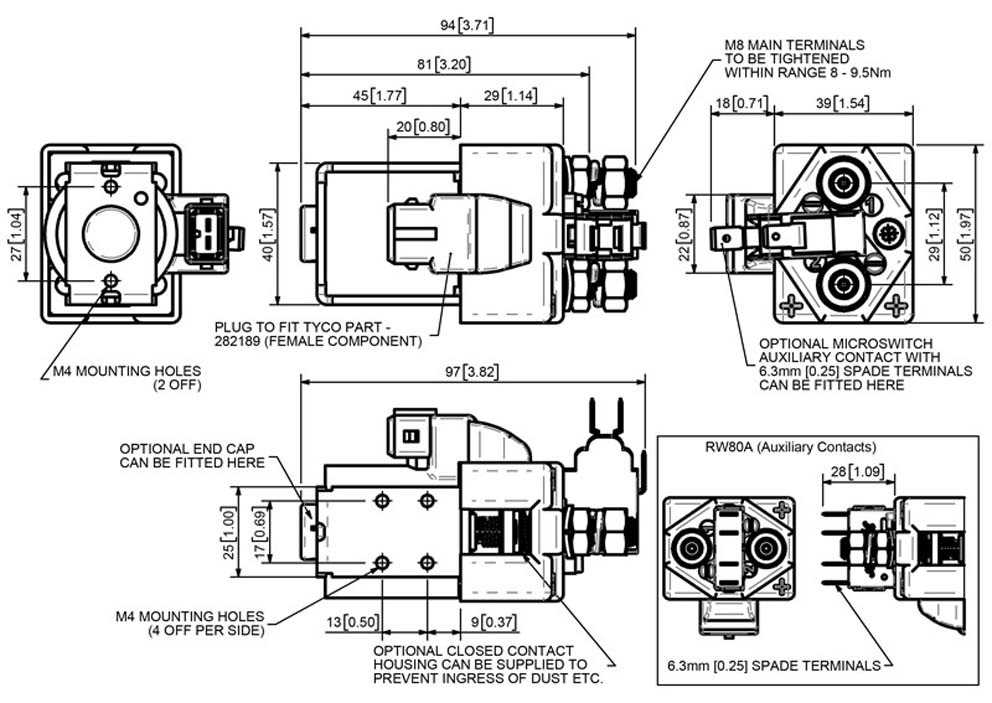

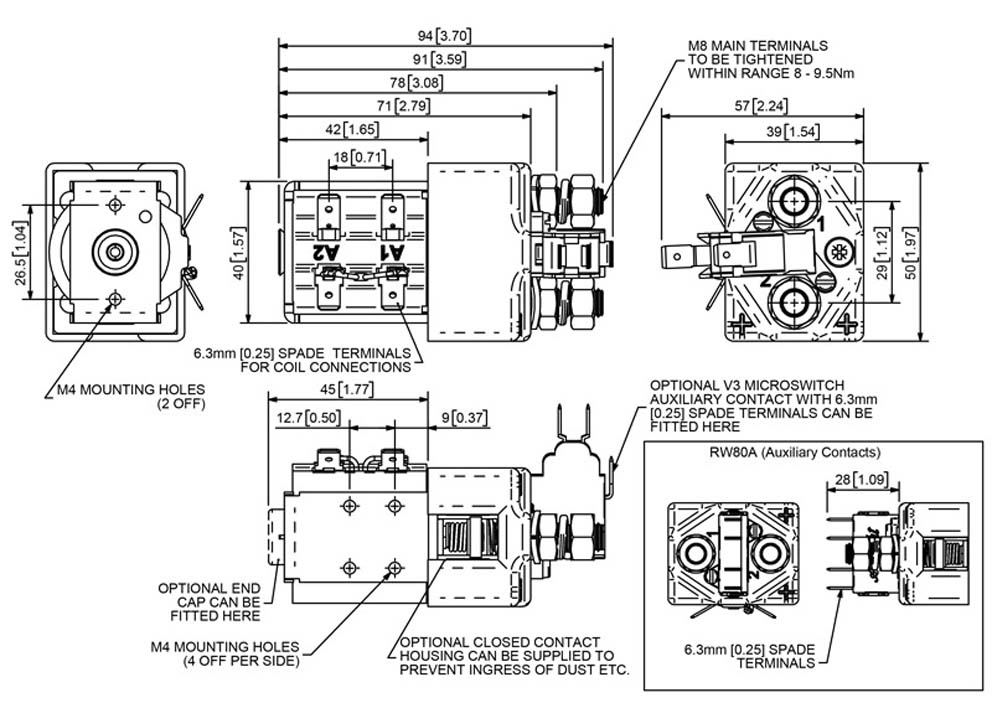

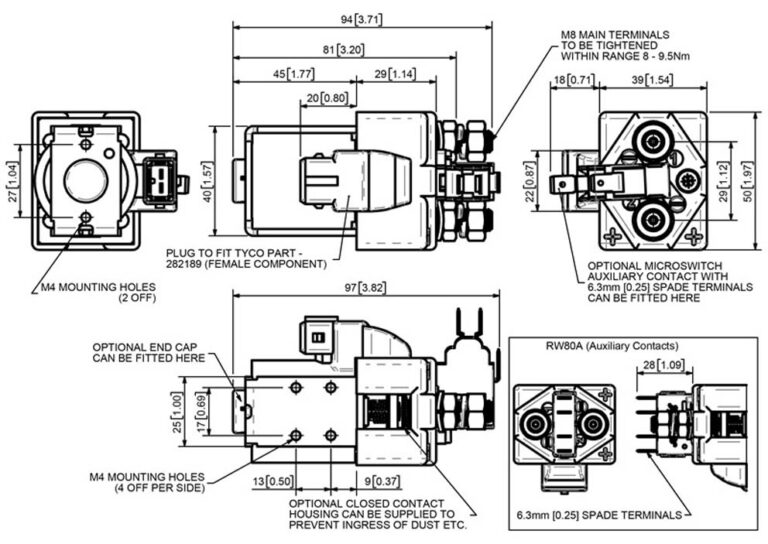

- Bornes principales à montants M8 et connexions en spirale de 6,3 mm.
- Options de montage adaptable, dans n’importe quelle orientation (demandez conseil technique pour des considérations complètes sur le montage).
Spare Parts – Please consult our Technical Department, or download Spare Parts Sheet where available.
RW80 Technical Info
| Application | InterruptedRating (Ith) | UninterruptedRating (Ith) |
|---|---|---|
| Thermal Current Rating | A | 125A |

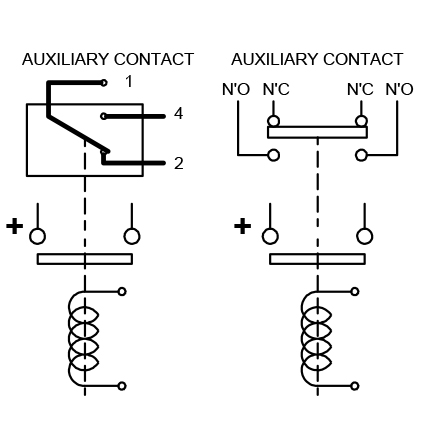

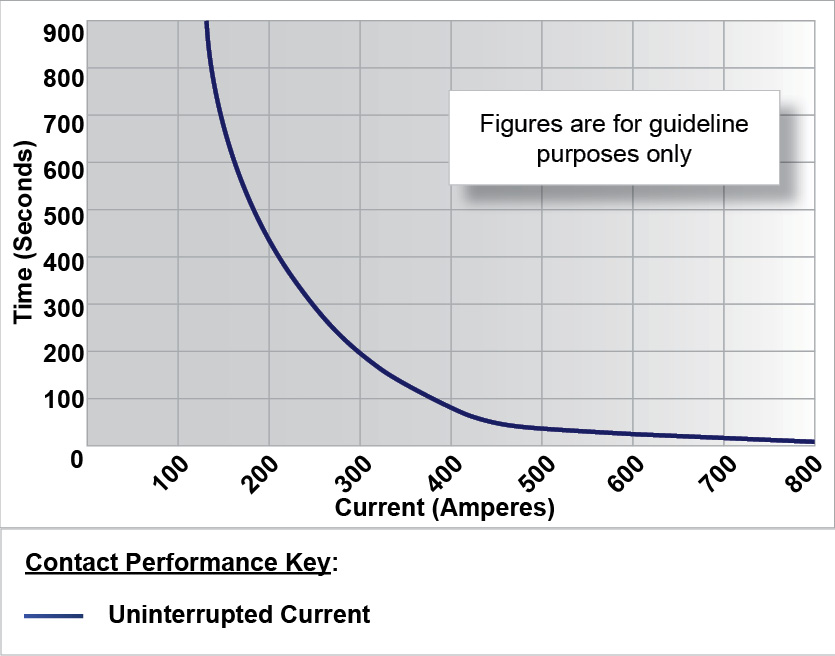

| Intermittent Current Rating: | ||
| 30% Duty | A | 230A |
| 40% Duty | A | 200A |
| 50% Duty | A | 175A |
| 60% Duty | A | 160A |
| 70% Duty | A | 150A |
| Rated Fault Current Breaking Capacity (lcn) 5ms Time Constraint: (In accordance with UL583*) | ||
| Blowouts | 600A at 96V D.C. | |
| No Blowouts | 600A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (lcn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | 190A at 96V D.C. | |
| No Blowouts | 190A at 60V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | V | 96V |
| No Blowouts | V | 60V |
| Typical Voltage Drop per pole across New Contacts at 125A | 40mV | |
| Mechanical Durability | >0 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | >6 - 240V | |
RW80 Features
Click on an optional feature to automatically add this selection to the enquiry form below
| Component | Configurations |
|---|---|
| AC Rectifier | |
| Auxiliary | |
| Blowouts | |
| Coil Suppression | |
| Coil Termination | |
| Contact Tip | |
| Enclosed Top Cover | |
| Fixed Contact Terminal | |
| Magnetic Latching | |
| Manual Override | |
| Mounting | |
| Steel Shroud EE | |
| Vacuum Impregnation |
